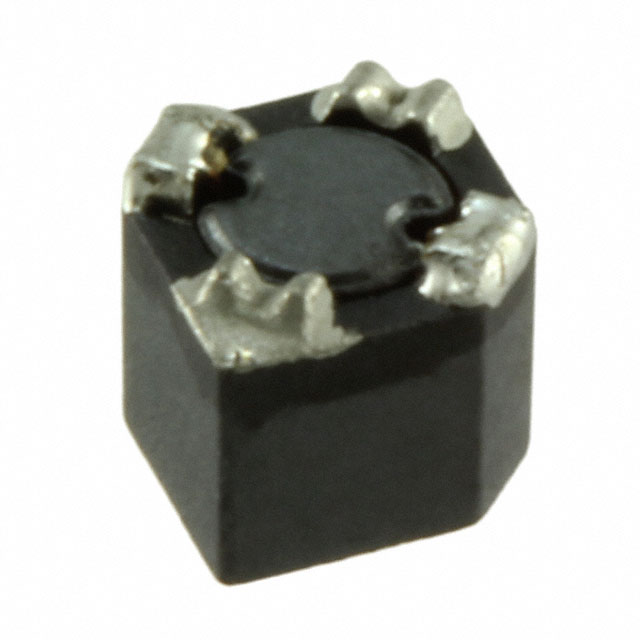

SRU3028A-220Y - SRU3028A Series

SRU3028A-220Y

Active
Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU3028A SERIES, 22 H, 30%, SHIELDED, 0.335 OHM, 600 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
SRU3028A-220Y - SRU3028A Series

SRU3028A-220Y

Active
Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU3028A SERIES, 22 H, 30%, SHIELDED, 0.335 OHM, 600 MA

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationSRU3028A-220Y
Current - Saturation (Isat)620 mA
Current Rating (Amps)600 mA
DC Resistance (DCR)335 mOhm
Frequency - Self Resonant15 MHz
Height - Seated (Max)3 mm
Height - Seated (Max) [Max]0.118 in
Inductance22 µH
Inductance Frequency - Test100 kHz
Material - CoreFerrite
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Package / CaseNonstandard
Q @ Freq2.52 MHz, 18
RatingsAEC-Q200
ShieldingShielded
Size / Dimension [x]3.5 mm
Size / Dimension [x]0.138 "
Size / Dimension [y]3.3 mm
Size / Dimension [y]0.13 in
Tolerance30 %
TypeWirewound, Drum Core

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.91
10$ 0.77
25$ 0.70
50$ 0.66
100$ 0.55
250$ 0.51
Digi-Reel® 1$ 0.91
10$ 0.77
25$ 0.70
50$ 0.66
100$ 0.55
250$ 0.51
Tape & Reel (TR) 600$ 0.48
1200$ 0.44
3000$ 0.42
6000$ 0.41
15000$ 0.39
NewarkEach (Supplied on Full Reel) 2000$ 0.44
4000$ 0.39
6000$ 0.38
10000$ 0.37

Description

General part information

SRU3028A Series

22 µH Shielded Drum Core, Wirewound Inductor 600 mA 335mOhm Max Nonstandard
