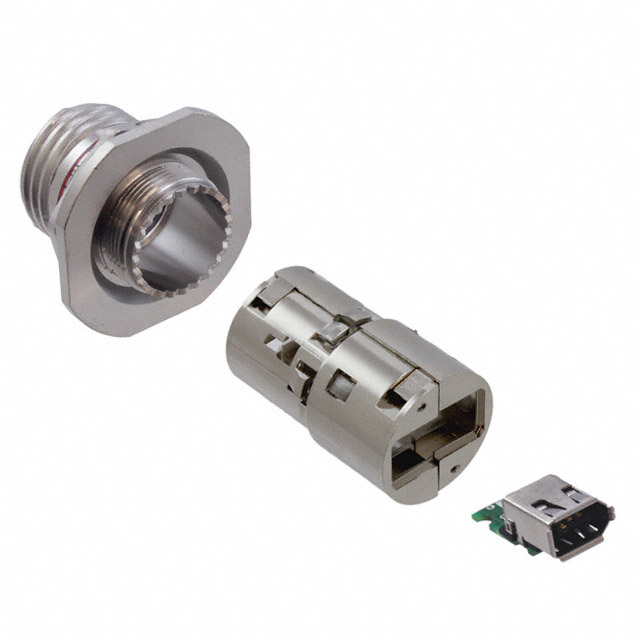

FWFTV72N

Obsolete

Amphenol Socapex

CONN RCP IEEE1394 FIREWIR PNL MT

Search across all available documentation for this part.

Obsolete

Amphenol Socapex

CONN RCP IEEE1394 FIREWIR PNL MT

Technical Specifications

Parameters and characteristics for this part

Part	Convert To (Adapter End)	Convert From (Adapter End)	Mounting Type	Termination	Number of Ports	Features	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Number of Contacts [custom]	Connector Type	Ingress Protection	Mating Cycles	Gender	Accessory Type	For Use With/Related Products
Amphenol Socapex FWFTV71G	Firewire (IEEE 1394) Receptacle	Firewire (IEEE 1394) Receptacle	Bulkhead Panel Mount
Amphenol Socapex FWFTV72N				PC Board	1	Circular Threaded Coupling	Bulkhead - Front Side Nut	85 °C	-40 °C	6	Firewire (IEEE 1394)	IP68 - Dust Tight Waterproof	500	Receptacle
Amphenol Socapex FWFTVC2N															Cover	Firewire (IEEE 1394) Receptacles
Amphenol Socapex FWFTV21G	Firewire (IEEE 1394) Receptacle	Firewire (IEEE 1394) Receptacle	Panel Mount Screw Hole
Amphenol Socapex FWFTV2PE1N	Firewire (IEEE 1394) Receptacle	Firewire (IEEE 1394) Receptacle	Panel Mount Screw Hole
Amphenol Socapex FWFTV72G				PC Board	1	Circular Threaded Coupling	Bulkhead - Front Side Nut	85 °C	-40 °C	6	Firewire (IEEE 1394)	IP68 - Dust Tight Waterproof	500	Receptacle
Amphenol Socapex FWFTV71N	Firewire (IEEE 1394) Receptacle	Firewire (IEEE 1394) Receptacle	Bulkhead Panel Mount
Amphenol Socapex FWFTV6G-RS			Free Hanging (In-Line)	Solder	1	Circular Threaded Coupling				6	Firewire (IEEE 1394)			Plug
Amphenol Socapex FWFTV6G			Free Hanging (In-Line)	Solder	1	Circular Threaded Coupling		85 °C	-40 °C	6	Firewire (IEEE 1394)	IP68 - Dust Tight Waterproof	500	Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Firewire (IEEE 1394) Receptacle Connector 6 Position Panel Mount
