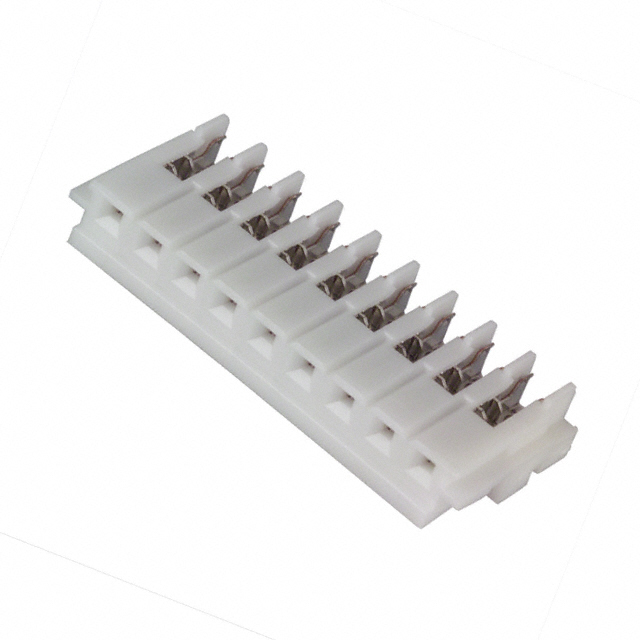

09HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 9POS IDC 26AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsJST Prefix Suffix Chart
09HR-6S-P-N
ActiveJST Sales America Inc.
CONN RCPT 9POS IDC 26AWG TIN
Deep-Dive with AI
DocumentsJST Prefix Suffix Chart
Technical Specifications
Parameters and characteristics for this part
| Specification | 09HR-6S-P-N |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Fastening Type | Detent Lock |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 9 |
| Number of Rows | 1 |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Wire Gauge | 26 AWG |
| Wire Type | Discrete |
09HR Series
| Part | Wire Gauge | Mounting Type | Connector Type | Number of Rows | Contact Type | Wire Type | Features | Number of Positions | Contact Finish | Cable Termination | Color | Fastening Type | Pitch [x] | Pitch [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 26 AWG | Free Hanging (In-Line) | Receptacle | 1 | Female Socket | Discrete | Closed End | 9 | Tin | IDC | Natural | Detent Lock | 0.098 in | 2.5 mm |
JST Sales America Inc. | 24 AWG | Free Hanging (In-Line) | Receptacle | 1 | Female Socket | Discrete | Closed End | 9 | Tin-Lead | IDC | Black | Detent Lock | 0.098 in | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 0.32 | |
Description
General part information
09HR Series
9 Position Rectangular Receptacle Connector IDC Tin 26 AWG
