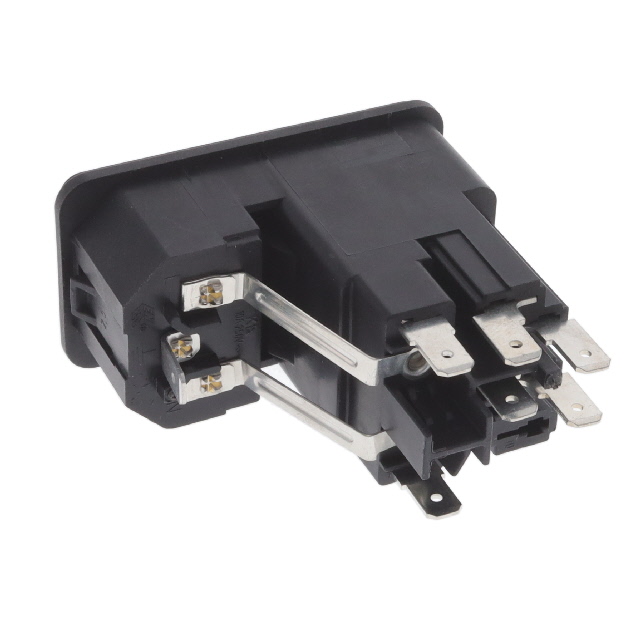

KE10.6200.109

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14

Technical Specifications

Parameters and characteristics for this part

Specification	KE10.6200.109

Accomodates a Fuse	True
Approval Agency	UL, ENEC, CSA
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Features	Voltage Selector
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Panel Cutout Dimensions [x]	27.5 mm
Panel Cutout Dimensions [y]	52.5 mm
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Features	Material Flammability Rating	Approval Agency	Ingress Protection	Filter Type
SCHURTER Inc. KE10.6200.109	250 VAC	Drawer Sold Separate	10 A	Receptacle Male Blades - Module	27.5 mm	52.5 mm	IEC 320-C14	Voltage Selector	UL94 V-0	CSA ENEC UL	IP40	Unfiltered - Commercial
SCHURTER Inc. KE10.6200.151	250 VAC	Drawer Sold Separate	10 A	Receptacle Male Blades - Module	27.5 mm	52.5 mm	IEC 320-C14	Voltage Selector	UL94 V-0	cURus ENEC	IP40	Unfiltered - Commercial
SCHURTER Inc. KE10.6200.107	250 VAC	Drawer Sold Separate	10 A	Receptacle Male Blades - Module	27.5 mm	52.5 mm	IEC 320-C14	Voltage Selector	UL94 V-0	CSA ENEC UL	IP40	Unfiltered - Commercial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14
