E3034S.18.86

Active

Prysmian Group

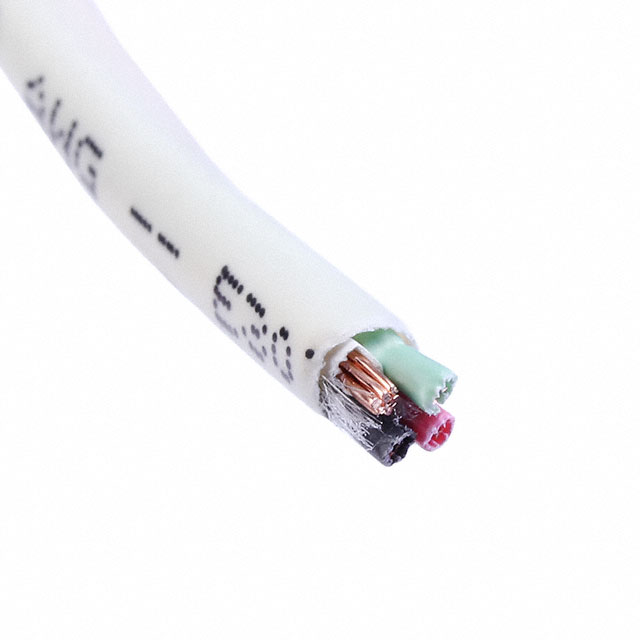

CABLE 4COND 18AWG NATURAL

Deep-Dive with AI

Search across all available documentation for this part.

E3034S.18.86

Active

Prysmian Group

CABLE 4COND 18AWG NATURAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E3034S.18.86

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.187 in
Jacket (Insulation) Diameter [diameter]	4.75 mm
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	18 AWG

E3034S Series

Part	Wire Gauge	Jacket (Insulation) Material	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Operating Temperature [Max]	Usage	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Insulation	Number of Conductors	Conductor Material	Ratings	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]
Prysmian Group E3034S.69.86	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm	Natural	75 ░C	Alarm Security Sound	1000 ft	304.8 m	0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Annealed Bare	ASTM B-3
Prysmian Group E3034S.30.86	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm	Natural	75 ░C	Alarm Security Sound	1000 ft	304.8 m	0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Annealed Bare	ASTM B-3
Prysmian Group E3034S.18.86	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm	Natural	75 ░C	Alarm Security Sound			0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Annealed Bare	ASTM B-3	500 '	152.4 m
Prysmian Group E3034S.41.86	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm	Natural	75 ░C	Alarm Security Sound	1000 ft	304.8 m	0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Annealed Bare	ASTM B-3	100 ft 500 '	30.5 m 152.4 m
Prysmian Group E3034S.41.05	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm	Yellow	75 ░C	Alarm Security Sound	1000 ft	304.8 m	0.187 in	4.75 mm			300 V	Poly-Vinyl Chloride (PVC)	4	Copper Annealed Bare	ASTM B-3			28	7
Prysmian Group E3034S.41.02	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm		75 ░C	Alarm Security Sound	1000 ft	15.24 m 304.8 m	0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Annealed Bare	ASTM B-3	25 ft 50 ft 100 ft	7.62 m 30.5 m
Prysmian Group E3034S.30.02	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm		75 ░C	Alarm Security Sound	1000 ft	304.8 m	0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Bare	ASTM B-3
Prysmian Group E3034S.30.10	18 AWG	Plenum Poly-Vinyl Chloride (PVC)	Multi-Conductor	0.015 in	0.381 mm	Gray	75 ░C	Alarm Security Sound	1000 ft	304.8 m	0.187 in	4.75 mm	26 AWG	7	300 V	Poly-Vinyl Chloride (PVC)	4	Copper Bare	ASTM B-3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 209.65
		3	$ 193.95
		5	$ 187.22
		7	$ 182.74
		10	$ 178.25
		25	$ 167.04
		50	$ 158.08

Description

General part information

E3034S Series

4 Conductor Multi-Conductor Cable Natural 18 AWG 500.0' (152.4m)

Documents

Technical documentation and resources

No documents available
