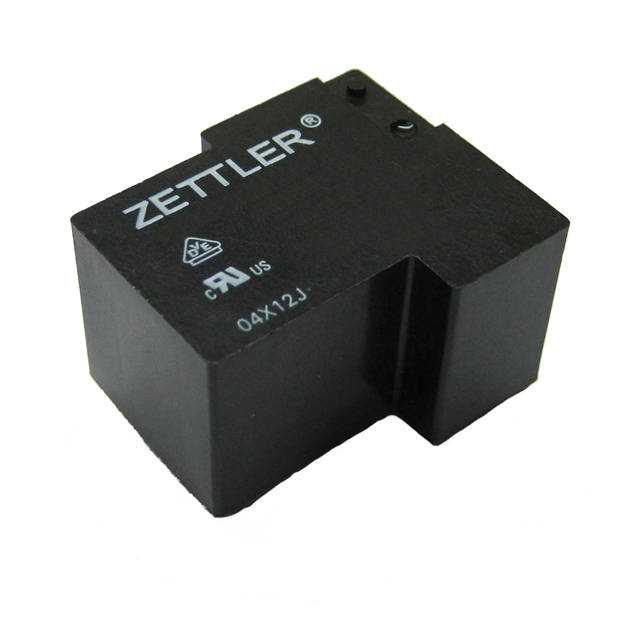

AZ2150-1A-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ2150-1A-24DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 40A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ2150-1A-24DEF

Approval Agency	cURus, VDE
Coil Current	36.4 mA
Coil Insulation	Class F
Coil Resistance	660 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	40 A
Load - Max Switching	1200 W, 12000 VA
Mounting Type	Through Hole
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	12 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	5 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	300 VAC, 30 VDC
Termination Style	PC Pin

AZ2150-1A Series

Part	Seal Rating	Coil Current	Coil Type	Coil Resistance	Release Time	Load - Max Switching	Switching Voltage [Max]	Must Release Voltage	Operate Time	Contact Form	Coil Insulation	Termination Style	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Must Operate Voltage	Mounting Type	Relay Type	Contact Material	Coil Voltage
American Zettler AZ2150-1A-12DEF	Sealed - Fully	77.4 mA	Non Latching	155 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	1.2 VDC	12 ms	SPST-NO (1 Form A)	Class F	PC Pin	40 A	85 °C	-55 °C	cURus VDE	9 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	12 VDC
American Zettler AZ2150-1AE-70DE	Sealed - Fully	12.7 mA	Non Latching	5.5 kOhms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	7 VDC	12 ms	SPST-NO (1 Form A)	Class B	PC Pin	40 A	85 °C	-55 °C	cURus VDE	52.5 VDC	Through Hole	General Purpose	Silver Tin Oxide (AgSnO)	70 VDC
American Zettler AZ2150-1A-5D		185.2 mA	Non Latching	27 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	0.5 VDC	12 ms	SPST-NO (1 Form A)	Class B	PC Pin	40 A	85 °C	-55 °C	cURus VDE	3.75 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	5 VDC
American Zettler AZ2150-1A-5DE	Sealed - Fully	185.2 mA	Non Latching	27 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	0.5 VDC	12 ms	SPST-NO (1 Form A)	Class B	PC Pin	40 A	85 °C	-55 °C	cURus VDE	3.75 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	5 VDC
American Zettler AZ2150-1A-18DEF	Sealed - Fully	47.4 mA	Non Latching	380 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	1.8 VDC	12 ms	SPST-NO (1 Form A)	Class F	PC Pin	40 A	105 ░C	-55 °C	cURus VDE	13.5 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	18 VDC
American Zettler AZ2150-1A-18DE	Sealed - Fully	47.4 mA	Non Latching	380 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	1.8 VDC	12 ms	SPST-NO (1 Form A)	Class B	PC Pin	40 A	85 °C	-55 °C	cURus VDE	13.5 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	18 VDC
American Zettler AZ2150-1A-24DEF	Sealed - Fully	36.4 mA	Non Latching	660 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	2.4 VDC	12 ms	SPST-NO (1 Form A)	Class F	PC Pin	40 A	85 °C	-55 °C	cURus VDE	18 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	24 VDC
American Zettler AZ2150-1A-5DEF	Sealed - Fully	185.2 mA	Non Latching	27 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	0.5 VDC	12 ms	SPST-NO (1 Form A)	Class F	PC Pin	40 A	105 ░C	-55 °C	cURus VDE	3.75 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	5 VDC
American Zettler AZ2150-1AE-24DE	Sealed - Fully	36.4 mA	Non Latching	660 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	2.4 VDC	12 ms	SPST-NO (1 Form A)	Class B	PC Pin	40 A	85 °C	-55 °C	cURus VDE	18 VDC	Through Hole	General Purpose	Silver Tin Oxide (AgSnO)	24 VDC
American Zettler AZ2150-1A-24D		36.4 mA	Non Latching	660 Ohms	5 ms	1200 W 12000 VA	30 VDC 300 VAC	2.4 VDC	12 ms	SPST-NO (1 Form A)	Class B	PC Pin	40 A	85 °C	-55 °C	cURus VDE	18 VDC	Through Hole	General Purpose	Silver Cadmium Oxide (AgCdO)	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.55
		10	$ 2.39
		25	$ 2.12
		40	$ 2.02
		80	$ 1.91
		240	$ 1.70
		440	$ 1.59
		960	$ 1.48
		4920	$ 1.43

Description

General part information

AZ2150-1A Series

General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
