LAE66A3CB

Active

Tusonix a Subsidiary of CTS Electronic Components

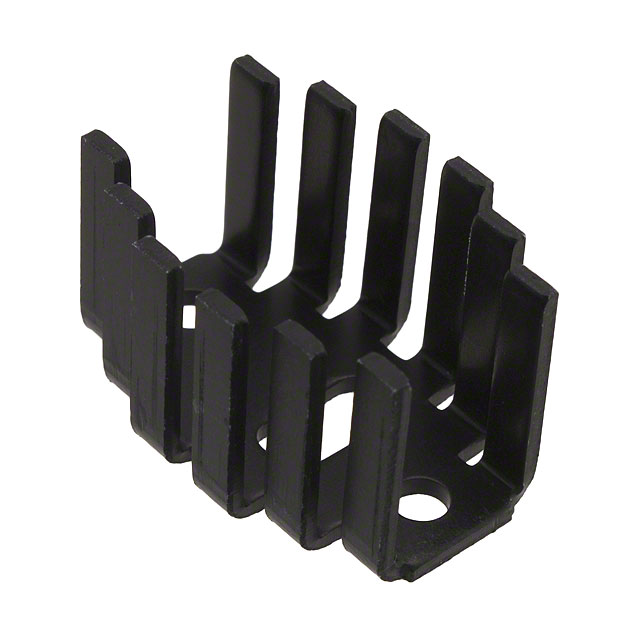

HEATSINK PWR .75"H BLACK TO-220

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK PWR .75"H BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	LAE66A3CB

Attachment Method	Bolt On
Fin Height [z]	0.75 in
Fin Height [z]	19.05 mm
Length	33.27 mm
Length	1.31 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-126, TO-220
Shape	Rhombus
Thermal Resistance @ Forced Air Flow	7 °C/W, 200 LFM
Thermal Resistance @ Natural	50 °C/W
Type	Board Level
Width [y]	22.86 mm
Width [y]	0.9 in

Part	Fin Height [z]	Fin Height [z]	Attachment Method	Material	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Thermal Resistance @ Natural	Length	Length	Material Finish	Shape	Type	Package Cooled
Tusonix a Subsidiary of CTS Electronic Components LAE66A3CB	0.75 in	19.05 mm	Bolt On	Aluminum	7 °C/W 200 LFM	22.86 mm	0.9 in	50 °C/W	33.27 mm	1.31 in	Black Anodized	Rhombus	Board Level	TO-126 TO-220

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-126, TO-220 Aluminum Board Level
