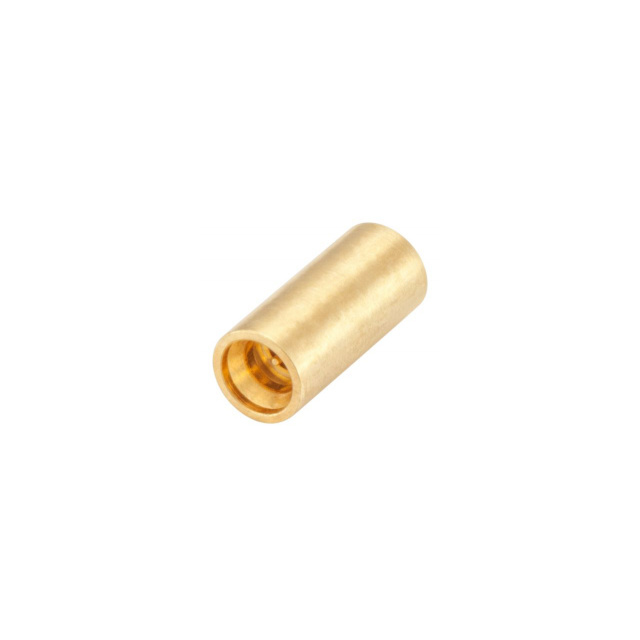

18S15R-0.5E3

Active

Rosenberger

MINI SMP TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

MINI SMP TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	18S15R-0.5E3

Body Finish	Gold
Body Material	Beryllium Copper
Connector Type	Male Pin, Plug
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Type	Impedance	Frequency - Max [Max]	Contact Finish	Mounting Type	Contact Material	Dielectric Material	Body Finish	Body Material
Rosenberger 18S15R-0.5E3	Male Pin Plug	50 Ohms	40 GHz	Gold	Cap Free Hanging	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 93.23

General part information

Terminator Coax Connector Plug, Male Pin SMP 50 Ohms
