0395111002

Active

Molex

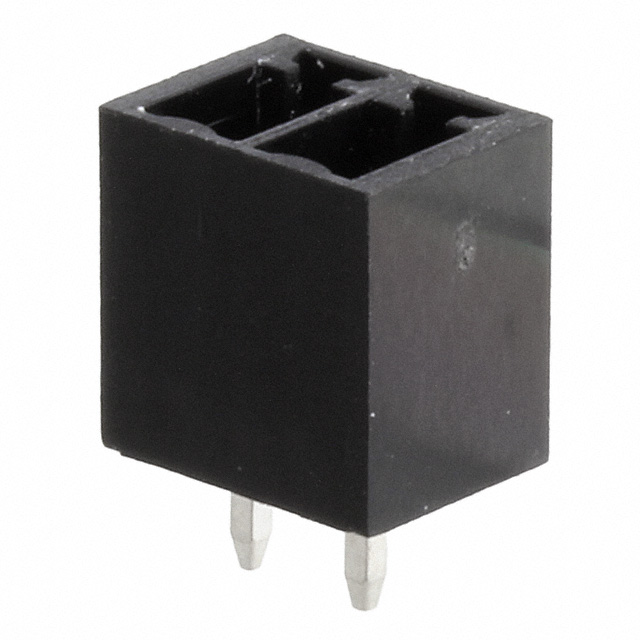

CONN SHROUDED HEADER (4 SIDES) HDR 2 POS 3.81MM SOLDER ST TOP ENTRY THRU-HOLE EUROSTYLE

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec Product Specification

0395111002

Active

Molex

CONN SHROUDED HEADER (4 SIDES) HDR 2 POS 3.81MM SOLDER ST TOP ENTRY THRU-HOLE EUROSTYLE

Deep-Dive with AI

Documents39500-001 Prod Spec Product Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395111002

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Current - UL	8 A
Header Orientation	Vertical
Insulation Height	9.14 mm
Insulation Height	0.36 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039511 Series

Part	Material Flammability Rating	Color	Positions Per Level	Mounting Type	Header Orientation	Current - UL	Pitch [x]	Pitch [x]	Termination Style	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Type	Insulation Height	Insulation Height	Voltage - UL	Number of Positions	Contact Mating Finish	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
Molex 0395116512	UL94 V-0	Green	12	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	12	Gold
Molex 0395111008	UL94 V-0	Black	8	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	8	Tin
Molex 0395116018	UL94 V-0	Green	18	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	18	Tin
Molex 0395111002	UL94 V-0	Black	2	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	2	Tin
Molex 0395111010	UL94 V-0	Black	10	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	10	Tin
Molex 0395111515	UL94 V-0	Black	15	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	15	Gold
Molex 0395116002	UL94 V-0	Green	2	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	2	Tin
Molex 0395111003	UL94 V-0	Black	3	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass			1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V		Tin	105 C	-40 C
Molex 0395111020	UL94 V-0	Black	20	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	20	Tin
Molex 0395111018	UL94 V-0	Black	18	Through Hole	Vertical	8 A	0.15 in	3.81 mm	Solder	Brass	-40 °C	105 ░C	1	Header Male Pins Shrouded (4 Side)	9.14 mm	0.36 in	300 V	18	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	4200	$ 0.34
Digikey	Bulk	1	$ 0.83
		10	$ 0.61
		25	$ 0.53
		50	$ 0.48
		100	$ 0.43
		250	$ 0.38
		500	$ 0.35
		1680	$ 0.31
		5040	$ 0.29

Description

General part information

039511 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
