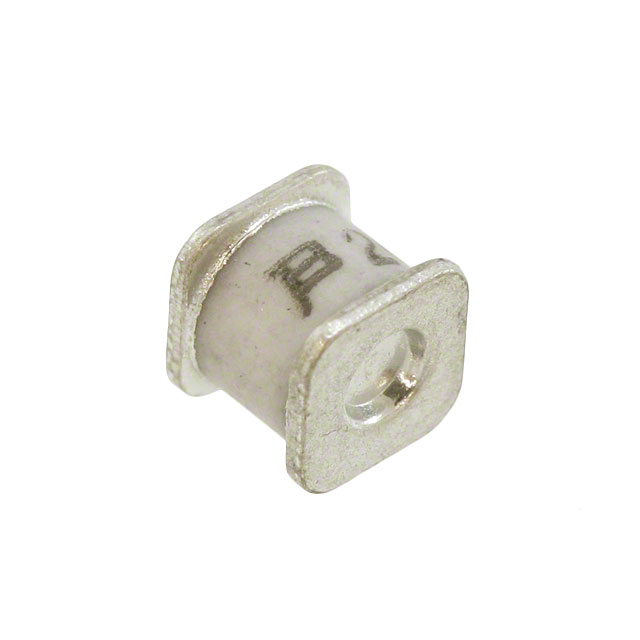

2053-07-SM-RPLF
ActiveBourns Inc.
GAS DISCHARGE TUBE (GDT), LIGHT DUTY, 2053 SERIES, 75 V, SMD, 3 KA, 800 V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2053-07-SM-RPLF
ActiveBourns Inc.
GAS DISCHARGE TUBE (GDT), LIGHT DUTY, 2053 SERIES, 75 V, SMD, 3 KA, 800 V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2053-07-SM-RPLF |
|---|---|
| Fail Short | False |
| Impulse Discharge Current (8/20µs) | 3000 A |
| Impulse Discharge Current (8/20µs) | 3 kA |
| Mounting Type | Surface Mount |
| Number of Poles | 2 |
| Package / Case | 2-SMD Cylinder Square End |
| Tolerance | 20 % |
| Voltage - DC Spark Over (Nom) | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.84 | |
| 5 | $ 0.70 | |||
| 10 | $ 0.65 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 0.84 | ||
| 5 | $ 0.70 | |||
| 10 | $ 0.65 | |||
| 50 | $ 0.54 | |||
| 100 | $ 0.50 | |||
| 250 | $ 0.45 | |||
| Tape & Reel (TR) | 900 | $ 0.39 | ||
| 1800 | $ 0.36 | |||
| 2700 | $ 0.34 | |||
| 4500 | $ 0.32 | |||
| 6300 | $ 0.31 | |||
| 9000 | $ 0.30 | |||
| 22500 | $ 0.29 | |||
| Newark | Each (Supplied on Full Reel) | 1 | $ 0.41 | |
| 5000 | $ 0.40 | |||
| 10000 | $ 0.37 | |||
| 20000 | $ 0.34 | |||
| 30000 | $ 0.32 | |||
| 50000 | $ 0.30 | |||
Description
General part information
2053 Series
Gas Discharge Tube 75 V 3000A (3kA) ±20% 2 Pole Surface Mount
