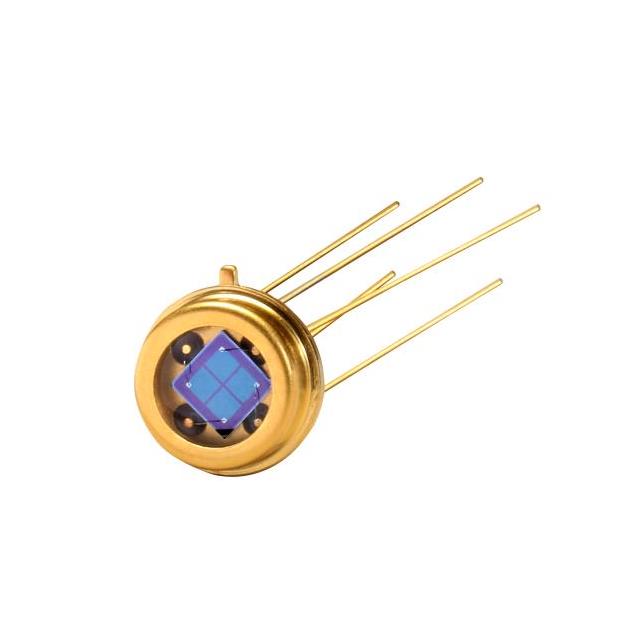

SPOT-4DUV
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 950NM TO5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPOT-4DUV
ActiveOSI Optoelectronics, Inc.
SENSOR PHOTODIODE 950NM TO5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SPOT-4DUV |
|---|---|
| Active Area | 1.61 mm˛ |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 5 Leads |
| Package / Case | TO-5 Variant, Lens Top Metal Can |
| Response Time | 10 µs |
| Responsivity @ nm | 0.1 A/W |
| Spectral Range [Max] [x] | 1100 nm |
| Spectral Range [Min] [x] | 400 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 5 V |
| Wavelength | 950 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 67.86 | |
| 10 | $ 56.22 | |||
Description
General part information
SPOT-4 Series
Photodiode 950nm 10µs TO-5 Variant, 5 Leads, Lens Top Metal Can
