C8132.41.03

Unknown

Prysmian Group

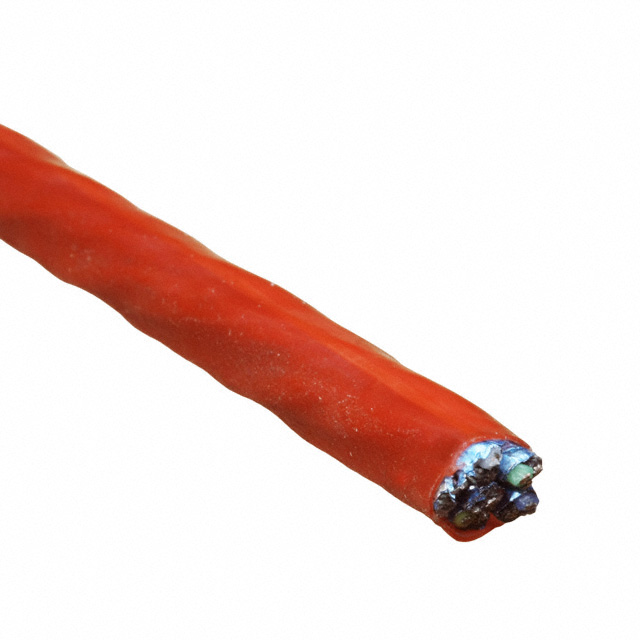

MULTI-PAIR 12COND 22AWG RED 100'

Search across all available documentation for this part.

Unknown

Prysmian Group

MULTI-PAIR 12COND 22AWG RED 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C8132.41.03

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Flame Retardant, Drain Wire
Jacket (Insulation) Diameter [diameter]	7.85 mm
Jacket (Insulation) Diameter [diameter]	0.309 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	12
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-40 °C
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Ratings	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Coverage	Usage	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Features	Shield Type	Shield Material	Length	Length	Wire Gauge	Conductor Insulation	Jacket Color	Number of Conductors	Operating Temperature [Max]	Operating Temperature [Min]
Prysmian Group C8132.41.03	Copper Annealed Tinned	ASTM B-33	Fluorinated Ethylene-Propylene (FEP)	30.5 m	100 ft	7.85 mm	0.309 in	100 %	Communication Control	Multi-Pair	0.015 in	0.381 mm	7	30 AWG	300 V	Drain Wire Flame Retardant	Foil	Flexfoil®	1000 ft	304.8 m	22 AWG	Fluorinated Ethylene-Propylene (FEP)	Red	12	200 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 (6 Pair) Conductor Multi-Pair Cable Red 22 AWG Foil 1000.0' (304.8m)
