0192210251

Active

Molex

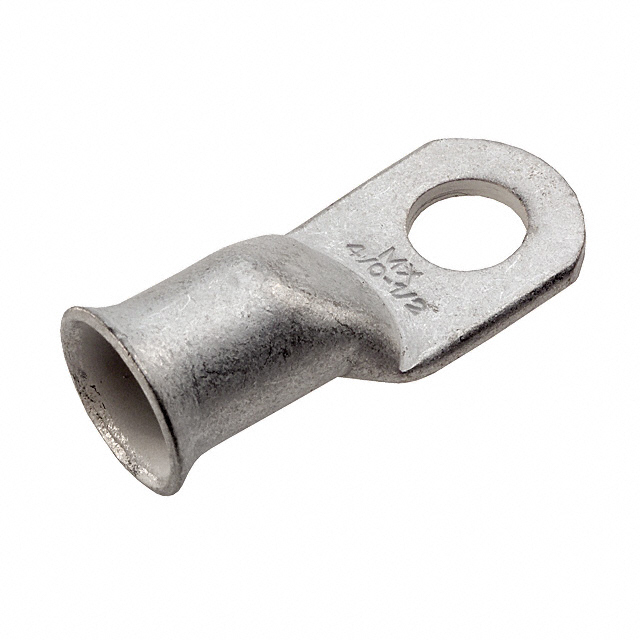

LUG TERMINAL (4/0)AWG COPPER 59.54MM TIN BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0192210251

Active

Molex

LUG TERMINAL (4/0)AWG COPPER 59.54MM TIN BAG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0192210251

Contact Finish	Tin
Contact Material	Copper
Features	Heavy Duty
Insulation	Non-Insulated
Length - Overall	59.54 mm
Length - Overall [x]	2.344 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	1/2 Stud
Terminal Type	Tubular (Battery Lugs), Flat Sided
Termination	Crimp
Thickness	0.135 in
Thickness	3.43 mm
Width - Outer Edges	24.99 mm
Width - Outer Edges [x]	0.984 "
Wire Gauge	4 aught AWG

019221 Series

...

Part	Features	Termination	Contact Finish	Width - Outer Edges [y]	Width - Outer Edges [y]	Stud/Tab Size	Terminal Type	Thickness	Thickness	Insulation	Wire Gauge	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness [z]	Thickness [z]
Molex 0192210420	Heavy Duty	Crimp	Tin	16.66 mm	0.656 in	0.25 Stud	Flat Sided Tubular (Battery Lugs)	2.54 mm	0.1 in	Non-Insulated	1 AWG	Copper	Free Hanging (In-Line)	43.64 mm	1.718 in
Molex 0192210410	Heavy Duty	Crimp					Flat Sided Tubular (Battery Lugs)	1.78 mm	0.07 in	Non-Insulated	8 AWG	Copper	Free Hanging (In-Line)			33.35 mm	1.313 in	3/8 Stud	0.594 in	15.09 mm
Molex 0192210791	Heavy Duty	Crimp					Flat Sided Tubular (Battery Lugs)	2.03 mm	0.08 "	Non-Insulated	4 AWG	Copper	Free Hanging (In-Line)			38.89 mm	1.531 in	3/8 Stud			0.625 in	15.88 mm
Molex 0192210237	Heavy Duty	Crimp	Tin	16.66 mm	0.656 in	0.3125 Stud	Flat Sided Tubular (Battery Lugs)	2.54 mm	0.1 in	Non-Insulated	1 AWG	Copper	Free Hanging (In-Line)	43.64 mm	1.718 in
Molex 0192210778	Heavy Duty	Crimp		18.5 mm	0.728 in		Flat Sided Tubular (Battery Lugs)			Non-Insulated	44 AWG	Copper	Free Hanging (In-Line)	46.84 mm	1.844 in			1/2 Stud					2.79 mm	0.11 in
Molex 0192210228	Heavy Duty	Crimp	Tin			0.3125 Stud	Flat Sided Tubular (Battery Lugs)	2.03 mm	0.08 "	Non-Insulated	6 AWG	Copper	Free Hanging (In-Line)	35.72 mm	1.406 in				0.594 in	15.09 mm
Molex 0192210245	Heavy Duty	Crimp	Tin				Flat Sided Tubular (Battery Lugs)			Non-Insulated		Copper	Free Hanging (In-Line)					1/2 Stud			0.813 in	20.65 mm	2.79 mm	0.11 in
Molex 0192210408	Heavy Duty	Crimp				10 Stud	Flat Sided Tubular (Battery Lugs)	1.78 mm	0.07 in	Non-Insulated	8 AWG	Copper	Free Hanging (In-Line)			30.15 mm	1.187 in				0.438 in	11.13 mm
Molex 0192210242	Heavy Duty	Crimp	Tin				Flat Sided Tubular (Battery Lugs)			Non-Insulated	44 AWG	Copper	Free Hanging (In-Line)	46.84 mm	1.844 in			1/2 Stud			0.718 in	18.24 mm	2.79 mm	0.11 in
Molex 0192210251	Heavy Duty	Crimp	Tin				Flat Sided Tubular (Battery Lugs)	3.43 mm	0.135 in	Non-Insulated	4 aught AWG	Copper	Free Hanging (In-Line)		2.344 in	59.54 mm		1/2 Stud		24.99 mm	0.984 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.72
Digikey	Bulk	1	$ 6.48
		10	$ 5.00
		25	$ 4.56
		50	$ 4.28
		100	$ 4.02
		250	$ 3.73
		500	$ 3.55
		1000	$ 3.38
		2500	$ 3.21

Description

General part information

019221 Series

Ring Terminal Connector 1/2 Stud Flat Sided, Tubular (Battery Lugs) 4/0 AWG Crimp
