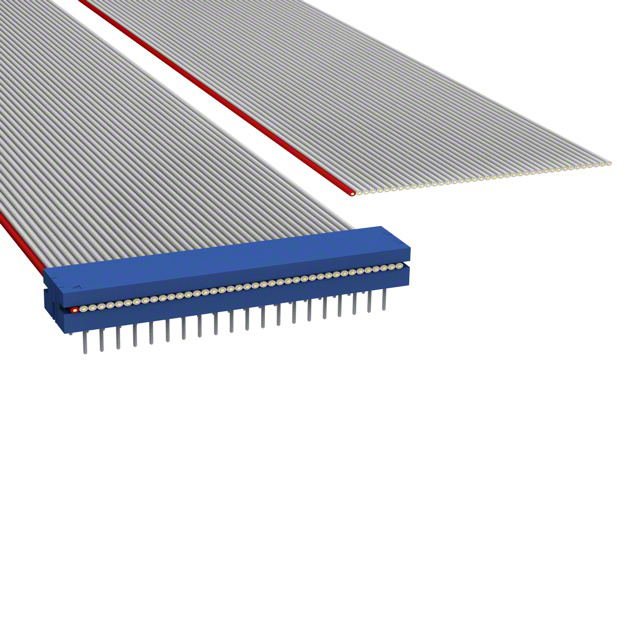

C2PXS-4036G

Active

CW Industries

DIP CABLE - CDP40S/AE40G/X

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP40S/AE40G/X

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Length [x]	Length [x]	Cable Termination	Usage	Pitch - Cable	Pitch - Cable	Shielding	Color	Length	Length	Length
CW Industries C2PXS-4036G	DIP to Cable	2	0.1 in	2.54 mm	Tin	2.54 µm	100 µin	40	3 ft	914.4 mm	IDC	Board In Socket (0.6")	0.05 "	1.27 mm	Unshielded
CW Industries C2PXS-4018M	DIP to Cable	2	0.1 in	2.54 mm	Tin	2.54 µm	100 µin	40	1.5 ft	457.2 mm	IDC	Board In Socket (0.6")	0.05 "	1.27 mm	Unshielded	Multiple Ribbon
CW Industries C2PXS-4018G	DIP to Cable	2	0.1 in	2.54 mm	Tin	2.54 µm	100 µin	40	1.5 ft	457.2 mm	IDC	Board In Socket (0.6")	0.05 "	1.27 mm	Unshielded
CW Industries C2PXS-4006M	DIP to Cable	2	0.1 in	2.54 mm	Tin	2.54 µm	100 µin	40			IDC	Board In Socket (0.6")	0.05 "	1.27 mm	Unshielded	Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)
