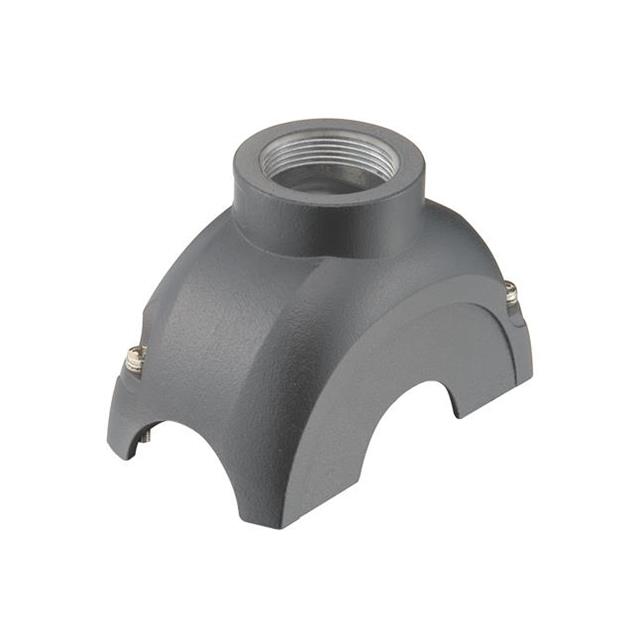

HAN-YELLOCK 60 HOOD TOP ENTRY M32

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11126001402

Active

HARTING Technology Group

HAN-YELLOCK 60 HOOD TOP ENTRY M32

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11126001402

Connector Type	Hood - Shell
Housing Color	Black
Housing Finish	Epoxy Powder Paint
Housing Material	Die Cast, Aluminum
Ingress Protection	IP67, IP65
Lock Location	Push Button Snap Lock on Hood Carrier
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	3.972 "
Size / Dimension [x]	100.89 mm
Size / Dimension [y]	2.205 in
Size / Dimension [y]	56 mm
Size / Dimension [z]	2.673 "
Size / Dimension [z]	67.9 mm
Style	Top Entry
Thread Size	M32

11126001 Series

Part	Lock Location	Housing Finish	Ingress Protection	Housing Material	Style	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Thread Size	Housing Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 11126001709
HARTING Technology Group 11126001401	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	IP65 IP67	Aluminum Die Cast	Top Entry	2.673 "	3.972 "	2.205 in	56 mm	67.9 mm	100.89 mm	M25	Black	Hood - Shell	125 °C	-40 °C
HARTING Technology Group 11126001203	Push Button Snap Lock on Hood Carrier	Powder Coated	IP65 IP67	Zinc Die Cast	Side Entry	2.362 "	4.528 "	3.228 "	82 mm	60 mm	115 mm		Black	Base - Box Mount	125 °C	-40 °C
HARTING Technology Group 11126001215	Screw Locks on Hood	Powder Coated	IP65 IP67	Aluminum Die Cast	Side Entry Dual	2.862 "	4.528 "	3.228 "	82 mm	72.7 mm	115 mm	M25	Black	Base - Box Mount	125 °C	-40 °C	Feed Through
HARTING Technology Group 11126001402	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	IP65 IP67	Aluminum Die Cast	Top Entry	2.673 "	3.972 "	2.205 in	56 mm	67.9 mm	100.89 mm	M32	Black	Hood - Shell	125 °C	-40 °C
HARTING Technology Group 11126001213	Screw Locks on Hood	Powder Coated	IP65 IP67	Aluminum Die Cast	Side Entry	2.862 "	4.528 "	3.228 "	82 mm	72.7 mm	115 mm		Gray	Base - Box Mount	125 °C	-40 °C
HARTING Technology Group 11126001415	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	IP65 IP67	Aluminum Die Cast	Dual Top Entry	2.445 in	3.972 "	2.205 in	56 mm	62.1 mm	100.9 mm	M20 M25	Black	Hood - Shell	125 °C	-40 °C
HARTING Technology Group 11126001501	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	IP65 IP67	Aluminum Die Cast	Side Entry	2.976 "	3.972 "	2.205 in	56 mm	75.6 mm	100.89 mm	M25	Black	Hood - Shell	125 °C	-40 °C
HARTING Technology Group 11126001217	Screw Locks on Hood	Powder Coated	IP65 IP67	Aluminum Die Cast	Side Entry Dual	2.862 "	4.528 "	3.228 "	82 mm	72.7 mm	115 mm		Gray	Base - Box Mount	125 °C	-40 °C	Feed Through
HARTING Technology Group 11126001503	Push Button Snap Lock on Hood Carrier	Epoxy Powder Paint	IP65 IP67	Aluminum Die Cast	Side Entry	2.976 "	3.972 "	2.205 in	56 mm	75.6 mm	100.89 mm		Black	Hood - Shell	125 °C	-40 °C
