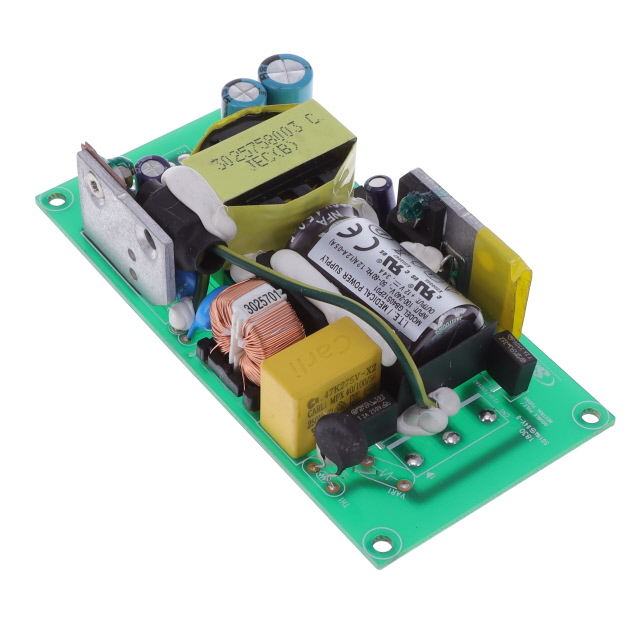

GB40S12P01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 12V 41W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GB40S12P01
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 12V 41W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GB40S12P01 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | cURus, DEMKO, CE |
| Current - Output 1 | 3.4 A |
| Efficiency | 88 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 41 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 20.6 mm |
| Size / Dimension [z] | 0.81 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 20.17 | |
| 5 | $ 19.58 | |||
| 10 | $ 18.99 | |||
| 25 | $ 18.39 | |||
| 50 | $ 17.80 | |||
| 100 | $ 17.21 | |||
| 250 | $ 16.61 | |||
| 500 | $ 16.32 | |||
Description
General part information
GB40S12 Series
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
