2M801-036-16M10-26PA

Active

Amphenol Aerospace Operations

CONN PLUG MALE 26POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG MALE 26POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Material	Primary Material	Orientation	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Termination	Features	Number of Positions	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Shell Finish	Insert Material	Current Rating (Amps)	Mounting Type	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Color
Amphenol Aerospace Operations 2M801-036-16MT9-19SA	Copper Alloy	Metal	A	Gold	-65 ░C	150 °C	12.7 mm	0.5 in	Crimp	Backshell Coupling Nut	19	Shielded	19	9	Female Sockets Plug	Durmalon™	Polyphenylene Sulfide (PPS)	5 A	Free Hanging (In-Line)	Aluminum
Amphenol Aerospace Operations 2M801-036-16M10-26PA	Copper Alloy	Metal	A	Gold	-65 ░C	150 °C			Crimp	Backshell Coupling Nut	26	Shielded	26	10	Male Pins Plug	Electroless Nickel	Polyphenylene Sulfide (PPS)	5 A	Free Hanging (In-Line)	Aluminum	14.22 mm	0.56 in	Silver
Amphenol Aerospace Operations 2M801-036-16MT7-10PA	Copper Alloy	Metal	A	Gold	-65 ░C	150 °C	9.91 mm	0.39 in	Crimp	Backshell Coupling Nut	10	Shielded			Male Pins Plug	Durmalon™	Polyphenylene Sulfide (PPS)	5 A	Free Hanging (In-Line)	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

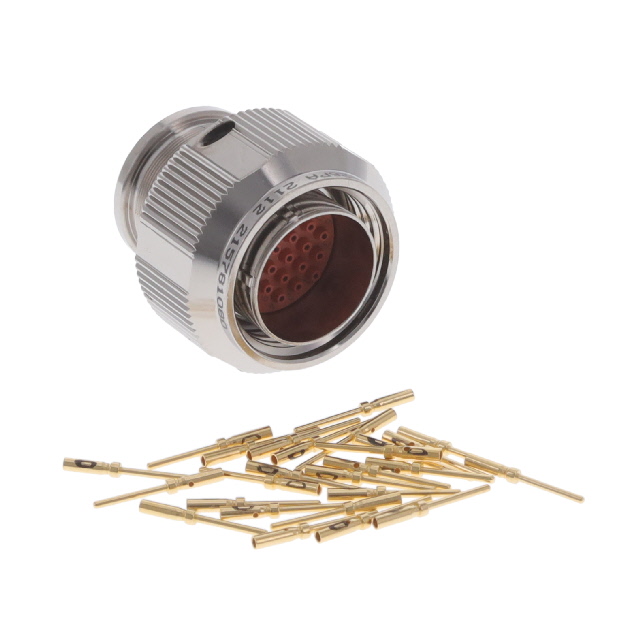

26 Position Circular Connector Plug, Male Pins Crimp
