TR70MB480-01E03 VI

Active

Cincon Electronics Co. LTD

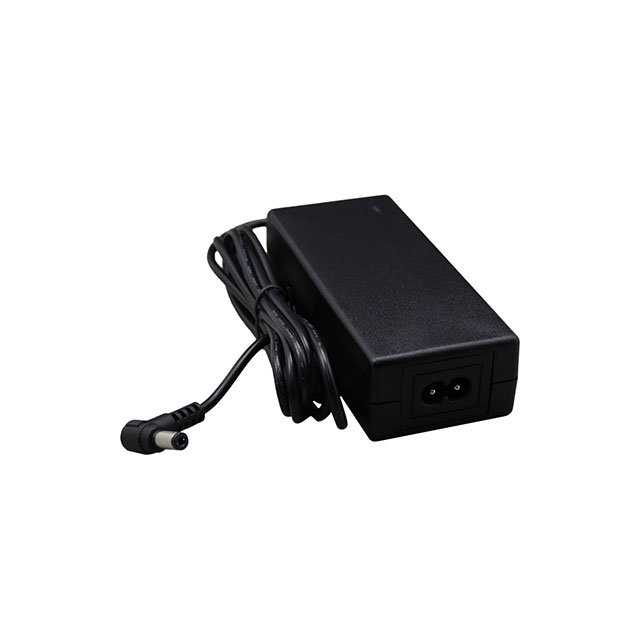

AC/DC DESKTOP ADAPTER 48V 72W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TR70MB480-01E03 VI

Active

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 48V 72W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR70MB480-01E03 VI

Applications	Medical
Approval Agency	cURus, FCC, NEMKO, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	1.5 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	12 mm
Polarization	Positive Center
Power (Watts)	72 W
Region Utilized	International
Size / Dimension [x]	4.72 in
Size / Dimension [x]	120 mm
Size / Dimension [y]	2.05 in
Size / Dimension [y]	52 mm
Size / Dimension [z]	31 mm
Size / Dimension [z]	1.22 in
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	80 VAC
Voltage - Output	48 V

TR70MB Series

Part	Output Connector [diameter]	Output Connector [x]	Output Connector	Input Connector	Efficiency	Current - Output (Max) [Max]	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Cord Length	Cord Length	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	No Load Power Consumption [Max]	Voltage - Output	Polarization	Input Type	Form	Operating Temperature [Min]	Operating Temperature [Max]
Cincon Electronics Co. LTD TR70MB180-01E03 VI	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	IEC 320-C8	CoC Tier 2 Level VI	3.9 A	International	264 VAC	80 VAC	Medical	70.9 in	1.8 m	70 W	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	CE cURus FCC NEMKO	150 mW	18 V	Positive Center	Cord	Desktop (Class II)	-20 C	70 °C
Cincon Electronics Co. LTD TR70MB120-01E02 VI	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	IEC 320-C8	CoC Tier 2 Level VI		International	264 VAC	80 VAC	Medical	48 in	1.22 m	70 W	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	CE cURus FCC NEMKO	150 mW	12 V	Positive Center	Cord	Desktop (Class II)	-20 C	70 °C
Cincon Electronics Co. LTD TR70MB480-01E03 VI	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	IEC 320-C8	CoC Tier 2 Level VI	1.5 A	International	264 VAC	80 VAC	Medical	70.9 in	1.8 m	72 W	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	CE cURus FCC NEMKO	150 mW	48 V	Positive Center	Cord	Desktop (Class II)	-20 C	70 °C
Cincon Electronics Co. LTD TR70MB360-01E03 VI	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	IEC 320-C8	CoC Tier 2 Level VI	1.9 A	International	264 VAC	80 VAC	Medical	70.9 in	1.8 m	68 W	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	CE cURus FCC NEMKO	150 mW	36 V	Positive Center	Cord	Desktop (Class II)	-20 C	70 °C
Cincon Electronics Co. LTD TR70MB150-01E02 VI	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	IEC 320-C8	CoC Tier 2 Level VI	4.65 A	International	264 VAC	80 VAC	Medical	48 in	1.22 m	70 W	2.05 in	4.72 in	31 mm	52 mm	1.22 in	120 mm	CE cURus FCC NEMKO	150 mW	15 VDC	Positive Center	Cord	Desktop (Class II)	-20 C	70 °C
