305-018-556-278

Active

EDAC Inc.

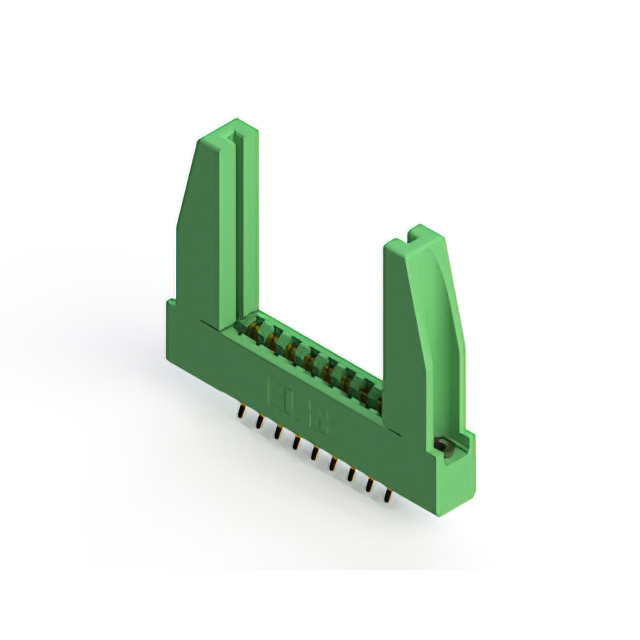

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

305-018-556-278

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 18 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	305-018-556-278

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	18
Number of Positions/Bay/Row [custom]	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

305-018 Series

Part	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Termination Rows	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Contact Material	Number of Positions/Bay/Row [custom]	Mounting Type	Number of Rows	Contact Finish	Features	Pitch [x]	Pitch [x]	Gender	Flange Feature	Read Out	Termination	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 305-018-555-208	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Board Edge Straddle Mount	2	Gold	Card Extender	0.156 in	3.96 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder
EDAC Inc. 305-018-556-501	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Board Edge Straddle Mount	2	Gold	Card Extender	0.156 in	3.96 mm	Female		Dual	Solder
EDAC Inc. 305-018-500-207	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9		2	Gold		0.156 in	3.96 mm	Female	Flush Mount M3 Threaded Insert Top Opening	Dual	Solder Eyelet(s)
EDAC Inc. 305-018-521-501	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Through Hole	2	Gold		0.156 in	3.96 mm	Female		Dual	Solder
EDAC Inc. 305-018-500-204	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9		2	Gold		0.156 in	3.96 mm	Female	Flush Mount Top Opening Unthreaded	Dual	Solder Eyelet(s)	3.96 mm	0.156 in
EDAC Inc. 305-018-556-502	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Board Edge Straddle Mount	2	Gold	Card Extender	0.156 in	3.96 mm	Female	Flush Mount Top Opening Unthreaded	Dual	Solder	3.25 mm	0.128 "
EDAC Inc. 305-018-556-278	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Board Edge Straddle Mount	2	Gold		0.156 in	3.96 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder
EDAC Inc. 305-018-521-578	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Panel Mount Through Hole	2	Gold		0.156 in	3.96 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder
EDAC Inc. 305-018-521-201	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Through Hole	2	Gold		0.156 in	3.96 mm	Female		Dual	Solder
EDAC Inc. 305-018-556-558	Non Specified - Dual Edge	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Green	2	Semi Bellows	18	10 Áin	0.25 Ám	Polyester Thermoplastic	Copper Alloy	9	Board Edge Straddle Mount	2	Gold		0.156 in	3.96 mm	Female	4-40 Flush Mount Threaded Insert Top Opening	Dual	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.09
Newark	Each	1	$ 12.08
		100	$ 9.35
		250	$ 7.98
		500	$ 7.19
		1000	$ 6.06

Description

General part information

305-018 Series

18 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
