OSTNR181100

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Search across all available documentation for this part.

Active

On Shore Technology Inc.

3.5MM TERM BLOCK HEADER W/ FLANG

Technical Specifications

Parameters and characteristics for this part

Specification	OSTNR181100

Color	Black
Contact Material	Copper
Contact Mating Finish	Tin
Contact Tail Length	0.079 in
Contact Tail Length	2 mm
Current - UL	8 A
Header Orientation	Vertical
Housing Material	Liquid Crystal Polymer (LCP)
Insulation Height	11.6 mm
Insulation Height	0.457 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	18
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	9
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Color	Type	Termination Style	Header Orientation	Mounting Type	Positions Per Level	Contact Material	Current - UL	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Housing Material	Voltage - UL	Number of Positions	Insulation Height	Insulation Height	Contact Mating Finish	Pitch [x]	Pitch [x]	Features
On Shore Technology Inc. OSTNR181100	Black	Header Male Pins Shrouded (4 Side)	Solder	Vertical	Through Hole	9	Copper	8 A	2	-40 °C	115 °C	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	300 V	18	11.6 mm	0.457 in	Tin	3.5 mm	0.138 in
On Shore Technology Inc. OSTNR181201	Black	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Through Hole	9	Copper	8 A	2	-40 °C	115 °C	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	150 V	18	10.8 mm	0.425 in	Tin	3.5 mm	0.138 in	Mating Flange
On Shore Technology Inc. OSTNR181101	Black	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	Through Hole	9	Copper	8 A	2	-40 °C	115 °C	0.079 in	2 mm	UL94 V-0	Liquid Crystal Polymer (LCP)	150 V	18	10.8 mm	0.425 in	Tin	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

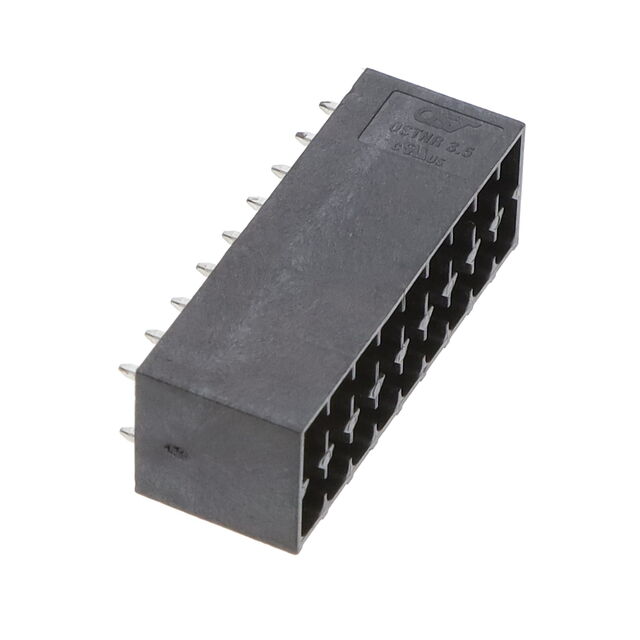

18 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
