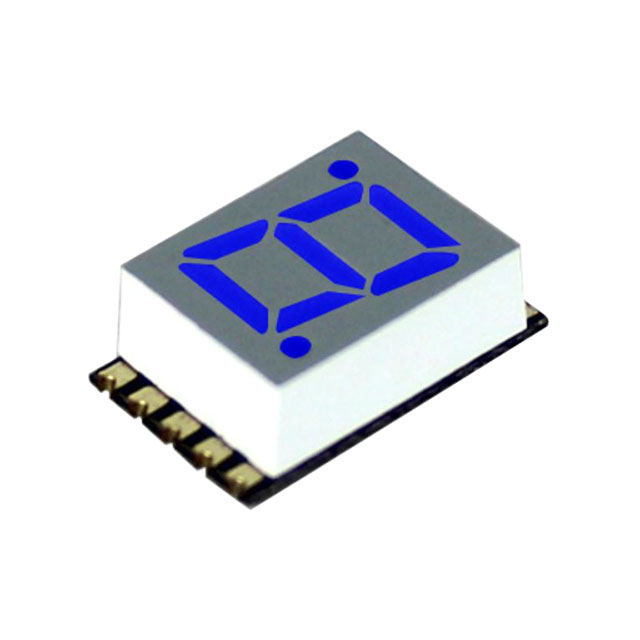

DSM7TA28106T
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.28" SGL BLU 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DSM7TA28106T
ActiveVisual Communications Company - VCC
DISPLAY 7SEG 0.28" SGL BLU 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSM7TA28106T |
|---|---|
| Color | Blue |
| Common Pin | Common Anode |
| Current - Test | 0.05 mA |
| Digit/Alpha Size | 7.11 mm |
| Digit/Alpha Size | 0.28 in |
| Display Type | 7-Segment |
| Millicandela Rating | 135 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 0.472 in |
| Size / Dimension [x] | 12 mm |
| Size / Dimension [y] | 7.4 mm |
| Size / Dimension [y] | 0.291 " |
| Size / Dimension [z] | 0.134 in |
| Size / Dimension [z] | 3.4 mm |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.00 | |
| 10 | $ 1.99 | |||
| 100 | $ 1.47 | |||
| 500 | $ 1.27 | |||
| Digi-Reel® | 1 | $ 3.00 | ||
| 10 | $ 1.99 | |||
| 100 | $ 1.47 | |||
| 500 | $ 1.27 | |||
| Tape & Reel (TR) | 1300 | $ 1.07 | ||
Description
General part information
DSM7TA28106 Series
Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.1V 0.05mA 0.472" H x 0.291" W x 0.134" D (12.00mm x 7.40mm x 3.40mm) 10-SMD, No Lead
Documents
Technical documentation and resources
No documents available
