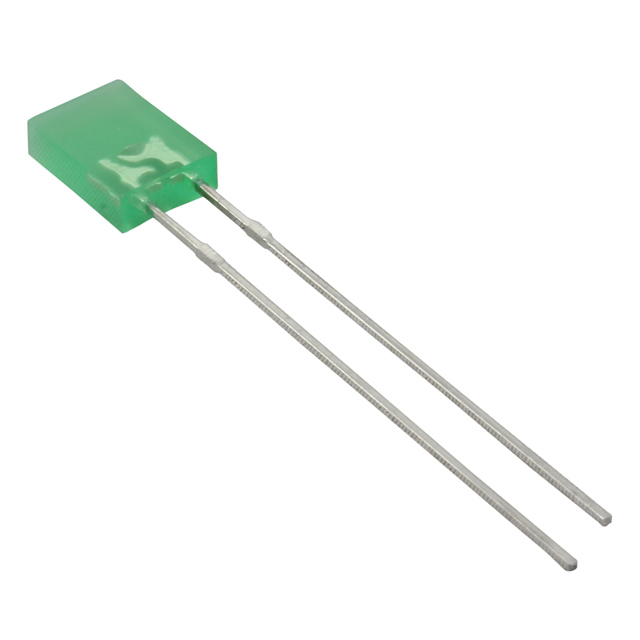

WP113GDT

Active

Kingbright

LED GREEN DIFF RECT 2MMX5MM T/H

Search across all available documentation for this part.

Active

Kingbright

LED GREEN DIFF RECT 2MMX5MM T/H

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Lens Style	Height (Max) [Max] [z]	Viewing Angle	Configuration	Millicandela Rating	Lens Size [y]	Lens Size [x]	Supplier Device Package	Package / Case	Color	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Wavelength - Dominant	Lens Transparency	Wavelength - Peak	Lens Type	Voltage Rating	Current
Kingbright WP113GDT	2.2 V	Through Hole	20 mA	Rectangle with Flat Top	7 mm	110 °	Standard	5 mcd	2 mm	5 mm	Rectangular 2mmx5mm	Radial	Green	2 mm	5 mm	Green	568 nm	Diffused	565 nm
Kingbright WP113WH/YD		Through Hole		Rectangle with Flat Top		110 °	Single	4 mcd					Yellow						588 nm	Diffused Tinted	1.95 V	30 mA
Kingbright WP113IDT	2 V	Through Hole	20 mA	Rectangle with Flat Top	7 mm	110 °	Standard	4 mcd	2 mm	5 mm	Rectangular 2mmx5mm	Radial	Red	2 mm	5 mm	Red	617 nm	Diffused	627 nm
Kingbright WP113HDT	2.25 V	Through Hole	20 mA	Rectangle with Flat Top	7 mm	110 °	Standard	0.6 mcd	2 mm	5 mm	Rectangular 2mmx5mm	Radial	Red	2 mm	5 mm	Red	635 nm	Diffused	700 nm
Kingbright WP113EDT	2 V	Through Hole	20 mA	Rectangle with Flat Top	7 mm	110 °	Standard	4 mcd	2 mm	5 mm	Rectangular 2mmx5mm	Radial		2 mm	5 mm	Orange	617 nm	Diffused	627 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 568nm LED Indication - Discrete 2.2V Radial
