2531-B06G00DBT

Active

Oupiin

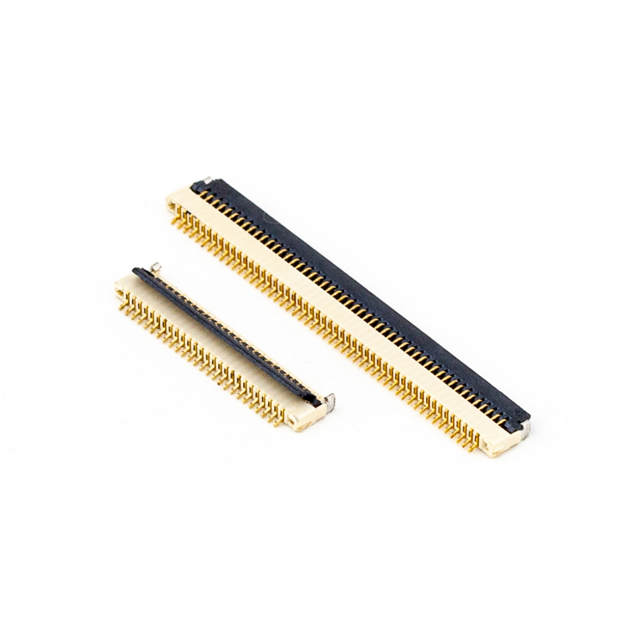

CONN FFC BOTTOM 6POS 0.5MM R/A

Search across all available documentation for this part.

Active

Oupiin

CONN FFC BOTTOM 6POS 0.5MM R/A

Technical Specifications

Parameters and characteristics for this part

Specification	2531-B06G00DBT

Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board [z]	1 mm
Height Above Board [z]	0.039 in
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

Part	Current Rating (Amps)	Number of Positions	Locking Feature	Contact Material	Termination	Cable End Type	Housing Material	Material Flammability Rating	Contact Finish	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Features	Mounting Type	Connector/Contact Type	FFC, FCB Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Flat Flex Type
Oupiin 2531-B06G00DBT	0.5 A	6	Flip Lock	Phosphor Bronze	Solder	Straight	Liquid Crystal Polymer (LCP)	UL94 V-0	Gold	0.5 mm	0.02 in	1 mm	0.039 in	50 V	Solder Retention	Surface Mount Right Angle	Contacts Bottom	0.3 mm	85 °C	-55 °C	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
