Q-2I00Q0003060i
ActiveAmphenol Custom Cable

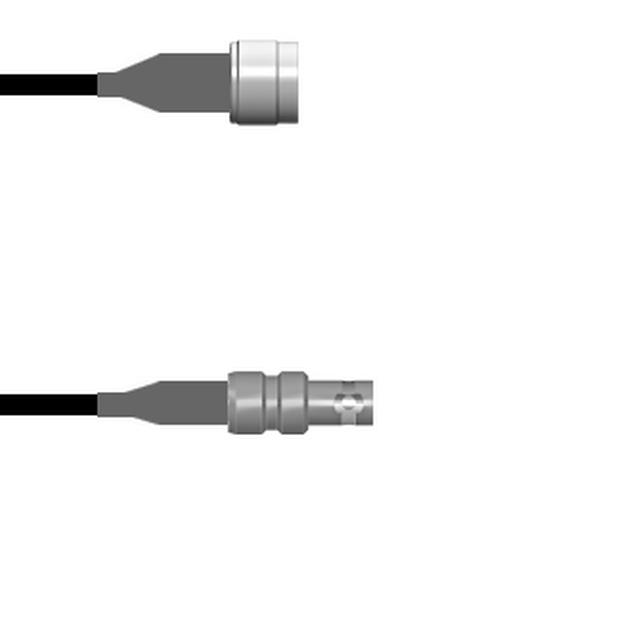

CBL ASSY HDBNC-NTYPE JACK-PLG 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-2I00Q0003060i
ActiveAmphenol Custom Cable
CBL ASSY HDBNC-NTYPE JACK-PLG 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-2I00Q0003060i |
|---|---|
| 1st Connector | HD-BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | HD-BNC to N-Type |
Q-2I00Q0 Series
| Part | Overall Impedance | 1st Connector | 1st Contact Gender | Style | 2nd Contact Gender | Length | Length | Length | Frequency - Max [Max] | Color | 2nd Connector Mounting Type | Features | 2nd Connector | Cable Type | 1st Connector Mounting Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 6.6 ft | 78.7 in | 2 m | 6000 MHz | Copper | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-316 | Free Hanging (In-Line) | ||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 6000 MHz | Black | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-174 | Free Hanging (In-Line) | 9.843 " | 250 mm | |||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 3.3 ft | 39.4 in | 1 m | 6000 MHz | Copper | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-316 | Free Hanging (In-Line) | ||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 4 ft | 48 in | 1200 mm | 6000 MHz | Copper | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-316 | Free Hanging (In-Line) | ||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 5 ft | 5 ' | 1.5 m | 6000 MHz | Black | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-174 | Free Hanging (In-Line) | ||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 36 in | 91.44 cm | 6000 MHz | Black | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-174 | Free Hanging (In-Line) | |||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 7 ft | 84 in | 2.1 m | 6000 MHz | Black | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-174 | Free Hanging (In-Line) | ||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 4 ft | 48 in | 1200 mm | 6000 MHz | Black | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-174 | Free Hanging (In-Line) | ||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 36 in | 91.44 cm | 6000 MHz | Copper | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-316 | Free Hanging (In-Line) | |||
Amphenol Custom Cable | 50 Ohms | HD-BNC Jack | Female | HD-BNC to N-Type | Male | 6000 MHz | Copper | Free Hanging (In-Line) | Shielded | N-Type Plug | RG-316 | Free Hanging (In-Line) | 9.843 " | 250 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 179.37 | |
| 25 | $ 175.89 | |||
| 50 | $ 172.41 | |||
| 100 | $ 168.92 | |||
| 250 | $ 165.44 | |||
Description
General part information
Q-2I00Q0 Series
Cable Assembly Coaxial HD-BNC to N-Type RG-174 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
