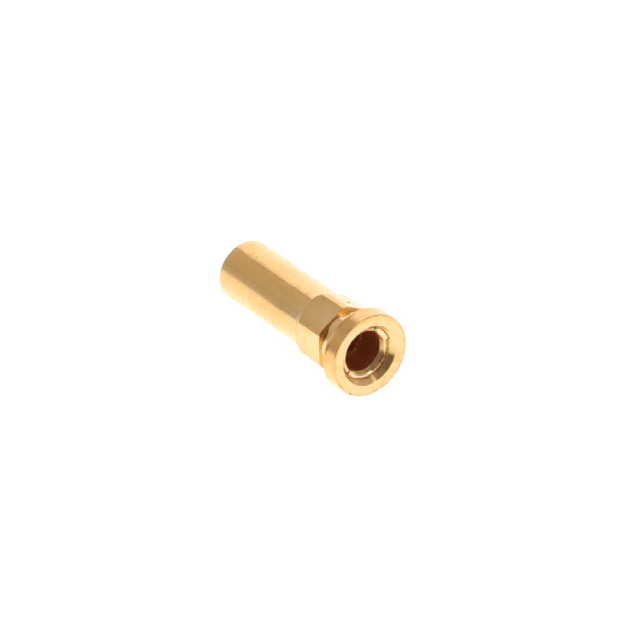

9293-0-15-15-06-27-10-0

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .022-.032" .200"

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN RECEPT PIN .022-.032" .200"

Technical Specifications

Parameters and characteristics for this part

Specification	9293-0-15-15-06-27-10-0

Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.16 mm
Flange Diameter [diameter]	0.085 in
Mounting Hole Diameter [diameter]	1.7 mm
Mounting Hole Diameter [diameter]	0.067 "
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.2 in
Socket Depth	5.08 mm
Tail Type	No Tail
Termination	Press-Fit, Hex

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Socket Depth	Socket Depth	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Type
Mill-Max Manufacturing Corp. 9293-0-15-15-06-27-10-0	Press-Fit Hex	-55 °C	125 °C	1.7 mm	0.067 "	0.2 in	5.08 mm	2.16 mm	0.085 in	Gold	Beryllium Copper	0.76 Ám	30 Áin	0.051 in	1.3 mm	No Tail
Mill-Max Manufacturing Corp. 9293-0-15-15-06-14-10-0	Press-Fit Hex	-55 °C	125 °C	1.7 mm	0.067 "	0.2 in	5.08 mm	2.16 mm	0.085 in	Gold	Beryllium Copper	0.25 Ám	10 Áin	0.051 in	1.3 mm	No Tail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Press-Fit, Hex
