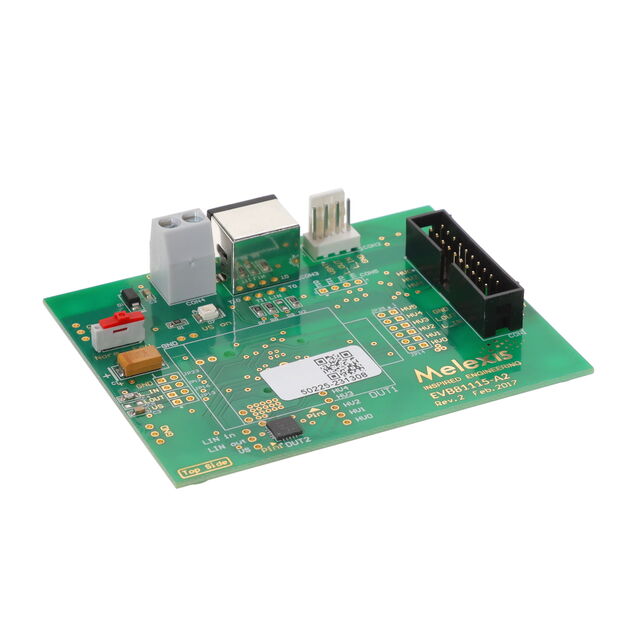

EVB81115-A2

Active

Melexis Technologies NV

BOARD EVAL MLX81115 A2 LIN RGB

Search across all available documentation for this part.

Active

Melexis Technologies NV

BOARD EVAL MLX81115 A2 LIN RGB

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Current - Output / Channel	Utilized IC / Part	Outputs and Type	Voltage - Input [Max]	Voltage - Input [Min]	Core Processor	Number of I/O	Program Memory Type	Supplier Device Package	Interface	Applications	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Controller Series	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Melexis Technologies NV EVB81115-A2	Board(s)	48 mA	MLX81115	6 Outputs	18 V	5.5 V
Melexis Technologies NV MLX81115KLQ-AAD-100-SP							16-Bit RISC	6 I/O	FLASH (32kB) ROM (16kB)	12-DFN (4x4)	SPI	LIN Controller	12-VFDFN Exposed Pad	18 V	5.5 V	MLX81115	Surface Mount	-40 °C	125 °C
Melexis Technologies NV EVB81115-A1	Board(s)	48 mA	MLX81115	6 Outputs	18 V	5.5 V
Melexis Technologies NV MLX81115 EMU							16-Bit	6 I/O	FLASH (32kB) ROM (16kB)	12-DFN (4x4)	LIN	LIN Controller	12-VFDFN Exposed Pad			MLX8115	Surface Mount	-40 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 176.25

General part information

MLX81115 - 6 Non-Isolated Outputs LED Driver Evaluation Board

Technical documentation and resources
