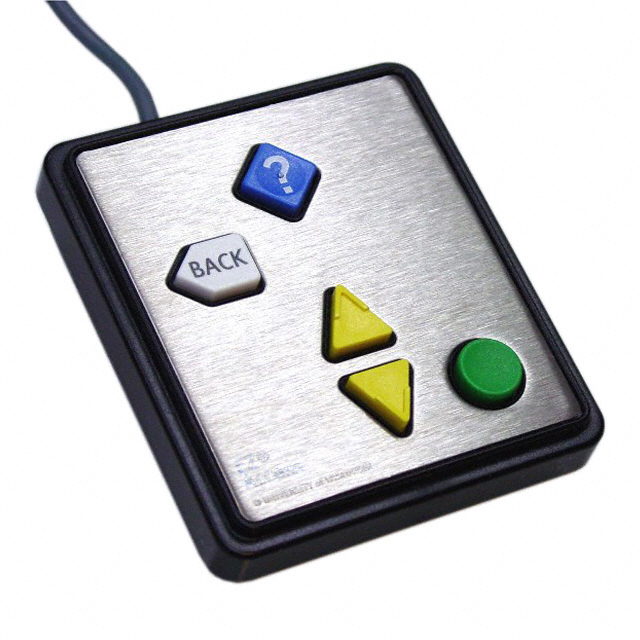

EZ05-222013

Obsolete

STORM INTERFACE

SWITCH KEYPAD 5KEY NON-ILLUM

Search across all available documentation for this part.

Obsolete

STORM INTERFACE

SWITCH KEYPAD 5KEY NON-ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	EZ05-222013

Approval Agency	CE, cURus
Features	Anti-Vandal
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Key Color	Multiple
Key Type	Polymer
Legend	Arrows, Help Button
Legend Color	White, Black
Legend Type	Fixed
Mounting Type	Panel Mount, Front or Rear
Number of Keys	5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Operational Life	4000000 Cycles
Output Type	USB
Panel Cutout Dimensions [x]	109.5 mm
Panel Cutout Dimensions [y]	95.5 mm
Switch Type	Conductive Rubber
Termination Style	Pin Header

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Key Type	Termination Style	Approval Agency	Switch Type	Illumination	Number of Keys	Key Color	Features	Operational Life	Output Type	Legend	Legend Type	Ingress Protection	Legend Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
STORM INTERFACE EZ05-222013	109.5 mm	95.5 mm	Polymer	Pin Header	CE cURus	Conductive Rubber	Non-Illuminated	5	Multiple	Anti-Vandal	4000000 Cycles	USB	Arrows Help Button	Fixed	IP65 - Dust Tight Water Resistant	Black White	-20 C	60 °C	Panel Mount Front or Rear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keypad Switch 5 Polymer Keys Conductive Rubber Contacts USB Output Non-Illuminated
