HR22-12WTPA-20P(73)

Active

Hirose Electric USA, Inc.

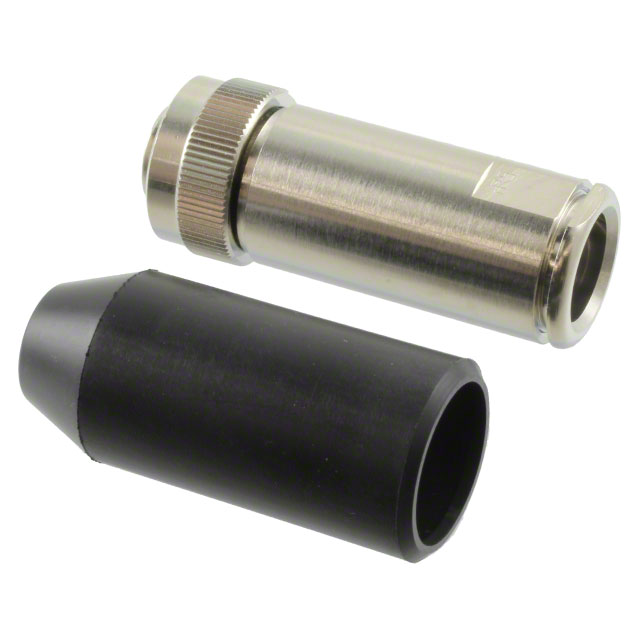

CONN PLUG MALE 20P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR22-12WTPA-20P(73)

Active

Hirose Electric USA, Inc.

CONN PLUG MALE 20P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR22-12WTPA-20P(73)

Applications	Industrial
Backshell Material, Plating	Acrylonitrile Butadiene Rubber (NBR)
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	2 A
Features	Coupling Nut, Clamp, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

HR22 Series

Part	Note	Number of Positions	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Size - Insert	Connector Type	Mounting Feature	Features	Shell Material	Shielding	Insert Material	Type	Shell Finish	Contact Shape	Material Flammability Rating	Orientation	Contact Type	Contact Finish - Mating	Applications	Color	Contact Material	Backshell Material, Plating	Voltage Rating	Primary Material	Current Rating (Amps)	For Use With/Related Products	Accessory Type	Termination Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Size	Contact Finish	Contact Termination	Ingress Protection	Material
Hirose Electric USA, Inc. HR22-12TJD-20PC(73)	Contacts Not Included	20	Silver	-25 °C	85 °C	Free Hanging (In-Line) Panel Mount	12	Jack Housing	Bulkhead - Front Side Nut	Backshell Cable Clamp Strain Relief	Zinc Alloy	Unshielded	Polybutylene Terephthalate (PBT)	For Male Pins	Nickel	Circular	UL94 V-0	Keyed	Crimp
Hirose Electric USA, Inc. HR22-12TJD-20S
Hirose Electric USA, Inc. HR22-12TJD-20S(73)		20		-25 °C	85 °C	Free Hanging (In-Line) Panel Mount	12	Female Sockets Jack	Bulkhead - Front Side Nut	Backshell Clamp	Zinc Alloy	Unshielded	Polybutylene Terephthalate (PBT)		Nickel		UL94 V-0	Keyed		Silver	Industrial	Black Silver	Beryllium Copper	Acrylonitrile Butadiene Rubber (NBR)	100 VAC 140 VDC	Metal	2 A
Hirose Electric USA, Inc. HR22-12WTR-C2(31)							12			Waterproof																		HR22 Series Receptacle	Cap (Cover) Dust
Hirose Electric USA, Inc. HR22-SC-221														Signal Stamped					Socket				Phosphor Bronze							Phosphor Bronze	24 AWG	28 AWG	1 mm	Gold	Crimp
Hirose Electric USA, Inc. HR22-12WTPA-20P(73)		20		-25 °C	85 °C	Free Hanging (In-Line)	12	Male Pins Plug		Backshell Clamp Coupling Nut	Zinc Alloy	Unshielded	Polybutylene Terephthalate (PBT)		Nickel		UL94 V-0	Keyed		Silver	Industrial	Black Silver	Brass	Acrylonitrile Butadiene Rubber (NBR)	100 VAC 140 VDC	Metal	2 A									IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. HR22-12WTPH-20SC(73)	Contacts Not Included	20	Silver	-25 °C	85 °C	Free Hanging (In-Line)	12	Plug Housing			Zinc Alloy	Unshielded	Polybutylene Terephthalate (PBT)	For Female Sockets	Nickel	Circular	UL94 V-0	Keyed	Crimp																	IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. HR22-12WTR-C(31)							12			Metal Chain with Ring Waterproof												Silver						HR22 Series Receptacle	Cap (Cover) Dust								Brass
Hirose Electric USA, Inc. HR22-12WTRA-20SC(73)	Contacts Not Included	20	Silver	-25 °C	85 °C		12	Receptacle Housing	Bulkhead - Front Side Nut		Zinc Alloy	Unshielded	Polybutylene Terephthalate (PBT)	For Female Sockets	Nickel	Circular	UL94 V-0	Keyed	Crimp																	IP67/IP68 - Dust Tight Waterproof
Hirose Electric USA, Inc. HR22-12TPM-20S		20				Free Hanging (In-Line)	12	Female Sockets Plug										Keyed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 47.05
		10	$ 43.17
		25	$ 41.51
		50	$ 40.13
		100	$ 37.91
		250	$ 36.81

Description

General part information

HR22 Series

20 Position Circular Connector Plug, Male Pins Solder Cup
