M5151-000005-500PG

Obsolete

TE Connectivity Measurement Specialties

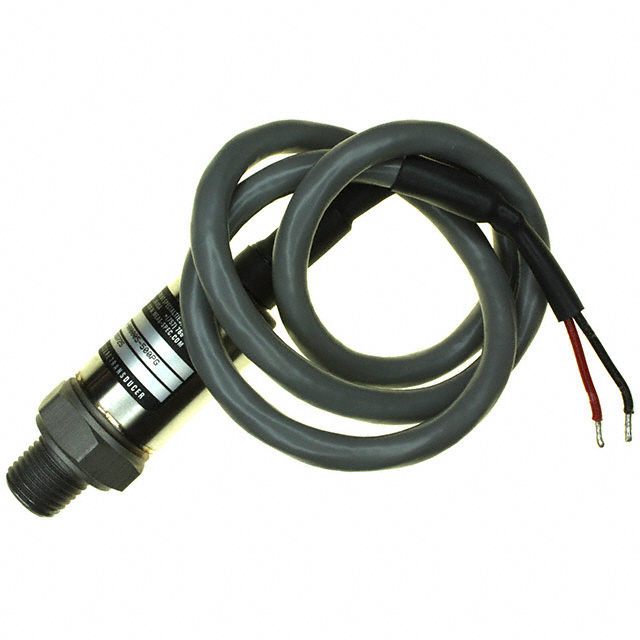

TRANSDUCER 500# PRES 4-20MA

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 500# PRES 4-20MA

Technical Specifications

Parameters and characteristics for this part

Part	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Maximum Pressure [Max]	Maximum Pressure [Max]	Applications	Output Type	Package / Case	Accuracy	Port Size [custom]	Port Size [x]	Port Size [x]	Port Size [custom]	Features	Output [Max]	Output [Min]	Termination Style	Port Style
TE Connectivity Measurement Specialties M5151-000005-500PG	Vented Gauge	30 VDC	9 V	3447.38 kPa	500 PSI	125 °C	-40 °C	1000 PSI	6894.76 kPa	Industrial Automation	Analog Current	Cylinder	1 %	NPT	0.25 "	6.35 mm	Male	Temperature Compensated	20 mA	4 mA	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5151-000005-050PG	Vented Gauge	30 VDC	9 V	344.74 kPa	50 PSI	125 °C	-40 °C	100 PSI	689.48 kPa	Industrial Automation	Analog Current	Cylinder	1 %	NPT	0.25 "	6.35 mm	Male	Temperature Compensated	20 mA	4 mA	Cable 2'	Threaded
TE Connectivity Measurement Specialties M5151-000005-250PG	Vented Gauge	30 VDC	9 V	1723.69 kPa	250 PSI	125 °C	-40 °C	500 PSI	3447.38 kPa	Industrial Automation	Analog Current	Cylinder	1 %	NPT	0.25 "	6.35 mm	Male	Temperature Compensated	20 mA	4 mA	Cable 2'	Threaded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TRANSDUCER 500# PRES 4-20MA

Technical documentation and resources
