1052604-1

Unknown

TE Connectivity Aerospace, Defense and Marine

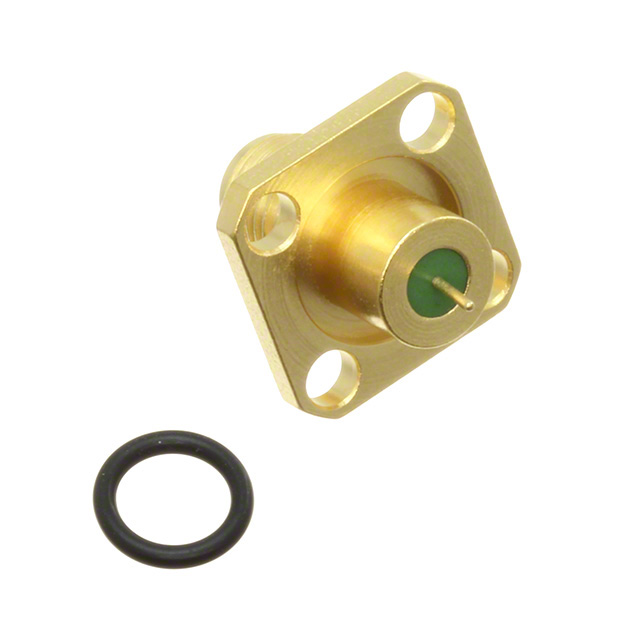

CONN SMA RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Unknown

TE Connectivity Aerospace, Defense and Marine

CONN SMA RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1052604-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	1000 VDC

Part	Frequency - Max [Max]	Center Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Body Material	Center Contact Plating	Voltage Rating	Contact Termination	Shield Termination	Dielectric Material	Body Finish	Connector Type	Housing Color	Connector Style	Impedance	Number of Ports	Mounting Feature
TE Connectivity Aerospace, Defense and Marine 1052604-1	18 GHz	Beryllium Copper	125 °C	-65 ░C	500	Stainless Steel	Gold	1000 VDC	Solder	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Receptacle	Gold	SMA	50 Ohms	1	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMA Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder
