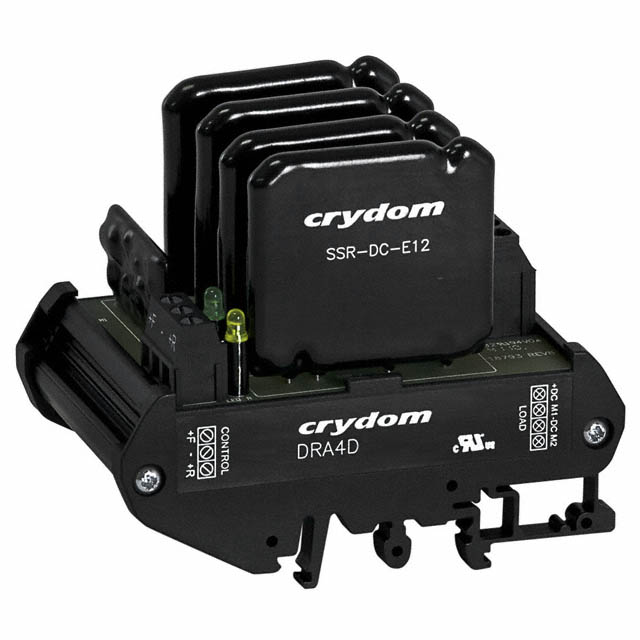

DRA4D100E12

Active

Sensata-Crydom

RELAY CONTACT H-BRG 100VDC 12A

Search across all available documentation for this part.

Active

Sensata-Crydom

RELAY CONTACT H-BRG 100VDC 12A

Technical Specifications

Parameters and characteristics for this part

Specification	DRA4D100E12

Control / Drive Type	Reversing Relay
Current - Output	12 A
For Use With/Related Products	DRA Series
Motor Type	Brushed DC
Mounting Type	DIN Rail
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Type	Module
Voltage - Load [Max]	100 V
Voltage - Load [Min]	1 V
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	15 VDC

Part	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	For Use With/Related Products	Current - Output	Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Motor Type	Control / Drive Type
Sensata-Crydom DRA4D100E12	1 V	100 V	-30 ░C	60 °C	DRA Series	12 A	Module	DIN Rail	15 VDC	32 VDC	Brushed DC	Reversing Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Reversing Relay 15 ~ 32 VDC Supply 12A 1 ~ 100V Load
