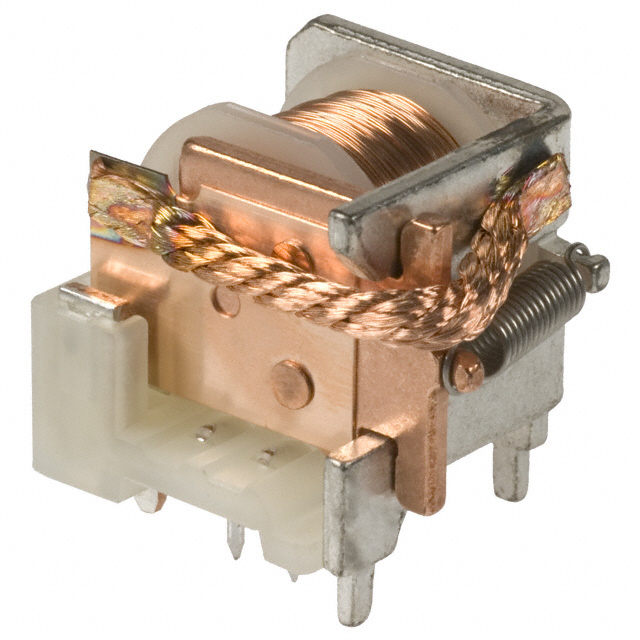

VKP-11F42

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPST 40A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPST 40A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Resistance	Must Operate Voltage	Contact Material	Coil Type	Must Release Voltage	Coil Current	Release Time	Termination Style	Operate Time	Mounting Type	Coil Voltage	Contact Rating (Current)	Switching Voltage [Max]	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Coil Power
TE Connectivity Potter & Brumfield Relays VKP-15F42	90 Ohms	6.8 VDC	Silver Nickel (AgNi)	Non Latching	1.2 VDC	133 mA	3 ms	PC Pin	5 ms	Through Hole	12 VDC	40 A	14 VDC	SPDT (1 Form C)	125 °C	-40 °C	1.6 W
TE Connectivity Potter & Brumfield Relays VKP-11F42	90 Ohms	6.8 VDC	Silver Nickel (AgNi)	Non Latching	1.2 VDC	133 mA	3 ms	PC Pin	5 ms	Through Hole	12 VDC	40 A	14 VDC	SPST-NO (1 Form A)	125 °C	-40 °C	1.6 W
TE Connectivity Potter & Brumfield Relays VKP-35F52	90 Ohms	6.8 VDC	Silver Tin Oxide (AgSnO)	Non Latching	1.2 VDC	133 mA	3 ms	PC Pin	5 ms	Through Hole	12 VDC	40 A	14 VDC	SPDT (1 Form C)	125 °C	-40 °C	1.6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RELAY AUTOMOTIVE SPST 40A 12V

Technical documentation and resources
