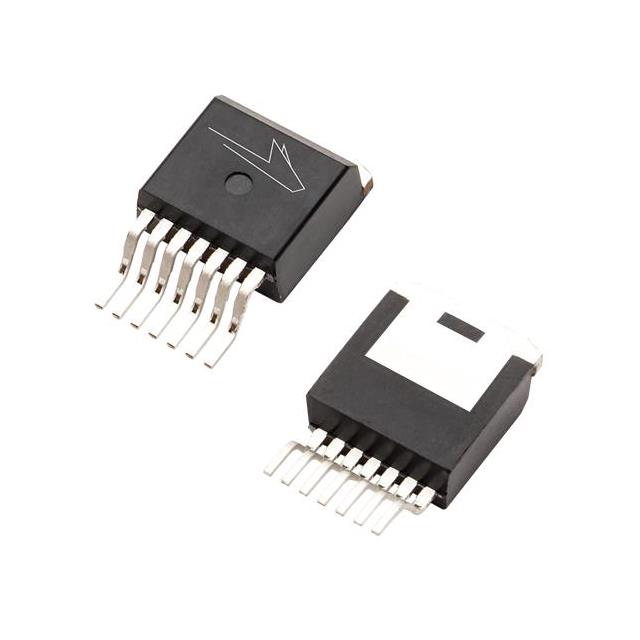

C2M1000170J-TR

Active

Wolfspeed

SICFET N-CH 1700V 5.3A D2PAK-7

Search across all available documentation for this part.

Active

Wolfspeed

SICFET N-CH 1700V 5.3A D2PAK-7

Technical Specifications

Parameters and characteristics for this part

Specification	C2M1000170J-TR

Current - Continuous Drain (Id) @ 25°C	5.3 A
Drain to Source Voltage (Vdss)	1700 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	13 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	200 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (7 Leads + Tab), TO-263-8, TO-263CA
Power Dissipation (Max)	78 W
Rds On (Max) @ Id, Vgs	1.4 Ohm
Supplier Device Package	TO-263-7
Vgs (Max) [Max]	25 V
Vgs (Max) [Min]	-10 V
Vgs(th) (Max) @ Id	4 V

Part	Vgs (Max) [Min]	Vgs (Max) [Max]	Package / Case	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Supplier Device Package	Vgs(th) (Max) @ Id	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Mounting Type	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds
Wolfspeed C2M1000170J	-10 V	25 V	TO-263-7 (Straight Leads)	13 nC	1700 V	D2PAK (7-Lead)	4 V	-55 °C	150 °C	1.4 Ohm	5.3 A	200 pF	N-Channel	Surface Mount	78 W
Wolfspeed C2M1000170D	-10 V	25 V	TO-247-3	13 nC	1700 V	TO-247-3	4 V	-55 °C	150 °C	1.1 Ohm	4.9 A		N-Channel	Through Hole		191 pF
Wolfspeed C2M1000170J-TR	-10 V	25 V	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	13 nC	1700 V	TO-263-7	4 V	-55 °C	150 °C	1.4 Ohm	5.3 A	200 pF	N-Channel	Surface Mount	78 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N-Channel 1700 V 5.3A (Tc) 78W (Tc) Surface Mount TO-263-7
