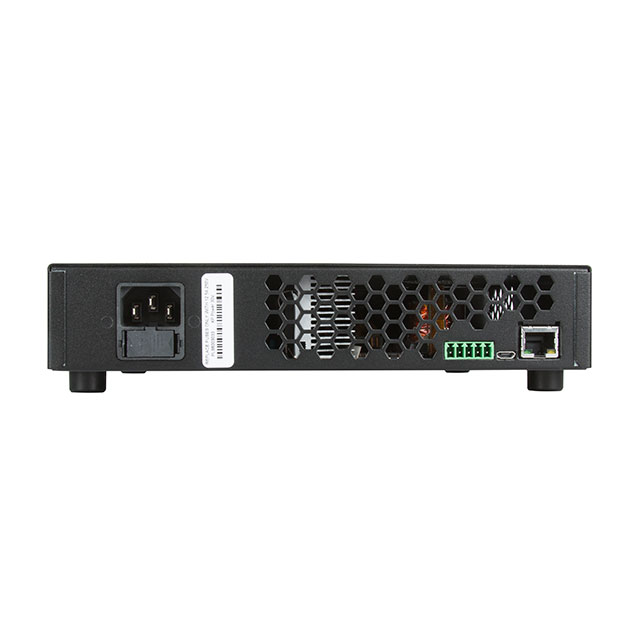

PLS6004002.5
ObsoleteXP POWER
600W PROGRAMMABLE PSU
Deep-Dive with AI
Search across all available documentation for this part.
PLS6004002.5
ObsoleteXP POWER
600W PROGRAMMABLE PSU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PLS6004002.5 |
|---|---|
| Accuracy - Voltmeter; Ammeter | 0.1% + 200mV, 0.1% + 5mA |
| Current - Output | 2.5 A |
| Current Regulation - Line | 15 mA |
| Current Regulation - Load | 15 mA |
| Display Type | LED |
| Number of Characters | 16 |
| Number of Characters | 2 |
| Number of Outputs | 1 |
| Power (Watts) | 600 W |
| Ripple | 50 mV, 200 mV |
| Size / Dimension [x] | 10.3 " |
| Size / Dimension [x] | 261.6 mm |
| Size / Dimension [y] | 8.82 " |
| Size / Dimension [y] | 224 mm |
| Size / Dimension [z] | 1.73 " |
| Size / Dimension [z] | 43.9 mm |
| Type | Rack Mount (AC to DC) |
| Voltage - Output | 400 VDC |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
| Voltage Regulation - Load | 200 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PLS6004002 Series
400VDC Output Rack Mount (AC to DC) Power Supply LED 2.5A Output 600W Features GPIB, LAN Interface, Programmable, Regulated, Remote Control, USB Interface
