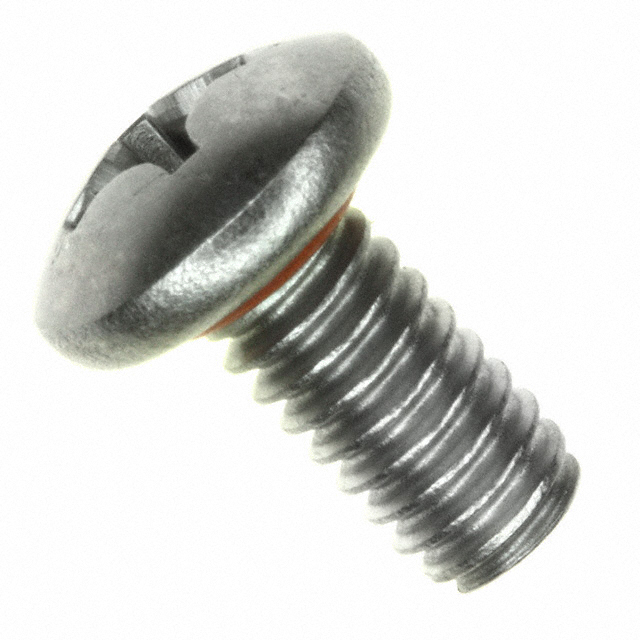

R1/4-20X1/2 2701

Active

APM HEXSEAL

MACH SCREW PAN PHILLIPS 1/4"-20

Search across all available documentation for this part.

Active

APM HEXSEAL

MACH SCREW PAN PHILLIPS 1/4"-20

Technical Specifications

Parameters and characteristics for this part

Part	Length - Below Head	Length - Below Head	Length - Below Head	Head Height	Head Height	Thread Size	Type	Features	Screw Head Type	Material	Length - Overall [x]	Length - Overall [x]	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Length - Below Head	Length - Below Head [x]	Length - Overall
APM HEXSEAL R1/4-20X1-1/4 2701	31.75 mm		1.25 in	4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel	36.2 mm	1.425 in	0.517 in	13.13 mm	Phillips
APM HEXSEAL R1/4-20X1/2 2701		12.7 mm	0.5 in	4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel	17.15 mm	0.675 "	0.517 in	13.13 mm	Phillips	1/2
APM HEXSEAL R1/4-20X7/16 2701		11.13 mm	0.438 "	4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel	15.57 mm	0.613 in	0.517 in	13.13 mm	Phillips	7/16
APM HEXSEAL R1/4-20X3/4 2701	0.75 "	19.05 mm	0.75 "	4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel	23.5 mm	0.925 "	0.517 in	13.13 mm	Phillips
APM HEXSEAL R1/4-20X7/8 2701	22.23 mm	0.875 in		4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel		1.05 in	0.517 in	13.13 mm	Phillips		0.875 in	26.67 mm
APM HEXSEAL R1/4-20X5/8 2701	0.625 in	15.88 mm	0.625 in	4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel	20.32 mm	0.8 in	0.517 in	13.13 mm	Phillips
APM HEXSEAL R1/4-20X9/16 2701	0.5625 in	14.3 mm	0.563 in	4.45 mm	0.175 in	1/4"-20	Machine Screw	Self Sealing	Pan Head	Stainless Steel		1.05 in	0.517 in	13.13 mm	Phillips			26.67 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1/4"-20 Pan Head Machine Screw Phillips Drive Stainless Steel
