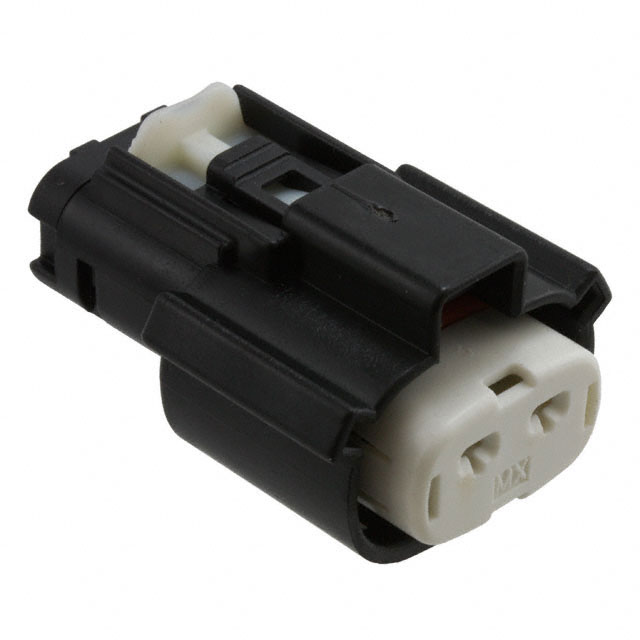

0194320014

Active

Molex

CONN RCPT HSG 2POS 7.62MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 2POS 7.62MM

Technical Specifications

Parameters and characteristics for this part

Part	Note	Fastening Type	Mounting Type	Color	Contact Termination	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing
Molex 0194320014	Contacts Not Included	Latch Holder	Free Hanging (In-Line)	Black	Crimp	1	0.3 in	7.62 mm	Receptacle	2	Female Socket	-40 °C	120 °C
Molex 0194320026	Contacts Not Included	Latch Holder	Free Hanging (In-Line)		Crimp	2	0.3 in	7.62 mm	Receptacle	4	Female Socket	-40 °C	120 °C	0.386 in	9.8 mm
Molex 0194320007	Contacts Not Included	Latch Holder	Free Hanging (In-Line)		Crimp	2	0.3 in	7.62 mm	Receptacle	6	Female Socket	-40 °C	120 °C	0.386 in	9.8 mm
Molex 0194320015	Contacts Not Included	Latch Holder	Free Hanging (In-Line)	Black	Crimp	1	0.3 in	7.62 mm	Receptacle	2	Female Socket	-40 °C	120 °C
Molex 0194320013	Contacts Not Included	Latch Holder	Free Hanging (In-Line)	Black	Crimp	1	0.3 in	7.62 mm	Receptacle	2	Female Socket	-40 °C	120 °C
Molex 0194320005	Contacts Not Included	Latch Holder	Free Hanging (In-Line)		Crimp	2	0.3 in	7.62 mm	Receptacle	6	Female Socket	-40 °C	120 °C	0.386 in	9.8 mm
Molex 0194320008	Contacts Not Included	Latch Holder	Free Hanging (In-Line)		Crimp	2	0.3 in	7.62 mm	Receptacle	6	Female Socket	-40 °C	120 °C	0.386 in	9.8 mm
Molex 0194320006	Contacts Not Included	Latch Holder	Free Hanging (In-Line)		Crimp	2	0.3 in	7.62 mm	Receptacle	6	Female Socket	-40 °C	120 °C	0.386 in	9.8 mm
Molex 0194320001	Contacts Not Included	Latch Holder	Free Hanging (In-Line)	Black	Crimp	2	0.3 in	7.62 mm	Receptacle	4	Female Socket	-40 °C	120 °C	0.386 in	9.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Rectangular Connectors - Housings Receptacle Black 0.300" (7.62mm)

Technical documentation and resources
