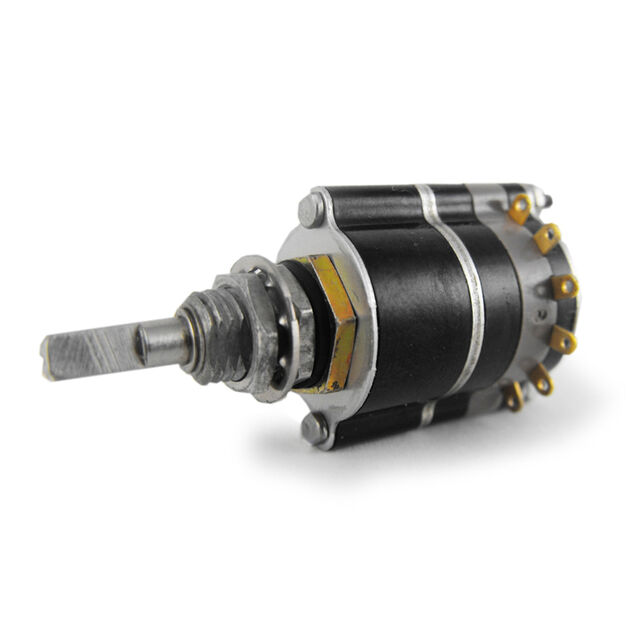

093101-2-02N

Active

Grayhill Inc.

SWITCH ROTARY 2POS 250MA 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH ROTARY 2POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

Part	Depth Behind Panel [z]	Contact Timing	Voltage Rating - DC	Current Rating (Amps)	Angle of Throw	Contact Material	Termination Style	Actuator Type [diameter]	Actuator Type	Circuit per Deck	Number of Decks [custom]	Index Stops	Voltage Rating - AC	Contact Finish	Number of Poles per Deck	Number of Positions	Actuator Length [x]
Grayhill Inc. 093101-2-02N	24.38 mm	Non-Shorting	28 V	250 mA	30 °	Silver Alloy	Solder Lug	3.17 mm	Flatted	DPDT	1	Fixed	115 V	Gold	2	2	9.53 mm
Grayhill Inc. 093101-5-02N	24.38 mm	Non-Shorting	28 V	250 mA	30 °	Silver Alloy	Solder Lug	3.17 mm	Flatted	5PDT	1	Fixed	115 V	Gold	5	2	9.53 mm
Grayhill Inc. 093101-1-03N	24.38 mm	Non-Shorting	28 V	250 mA	30 °	Silver Alloy	Solder Lug	3.17 mm	Flatted	SP3T	1	Fixed	115 V	Gold	1		9.53 mm
Grayhill Inc. 093101-6-02S	24.38 mm	Shorting	28 V	250 mA	30 °	Silver Alloy	Solder Lug	3.17 mm	Flatted	6PDT	1	Fixed	115 V	Gold	6	2	9.53 mm
Grayhill Inc. 093101-1-05N	24.38 mm	Non-Shorting	28 V	250 mA	30 °	Silver Alloy	Solder Lug	3.17 mm	Flatted	SP5T	1	Fixed	115 V	Gold	1		9.53 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 66.97

General part information

Rotary Switch 2 Position DPDT 250mA (AC/DC) 115 VAC Panel Mount
