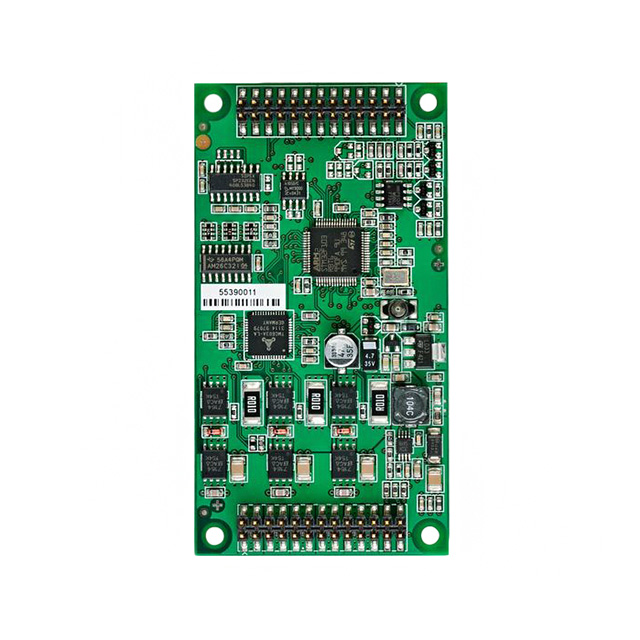

TMCM-1633-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

BOARD CONTROLLER DRIVER BLDC CAN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

BOARD CONTROLLER DRIVER BLDC CAN

Technical Specifications

Parameters and characteristics for this part

Specification	TMCM-1633-CANOPEN

Control / Drive Type	Brushless
Current - Output	10 A
For Use With/Related Products	BB-163X
Interface	CAN, RS-232
Motor Type	Brushless (BLDC)
Mounting Type	Chassis Mount
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Type	Board
Voltage - Load [Max]	50 V
Voltage - Load [Min]	14.5 V
Voltage - Supply [Max]	50 VDC
Voltage - Supply [Min]	14 V

Part	For Use With/Related Products	Motor Type	Interface	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Control / Drive Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Type	Voltage - Load [Min]	Voltage - Load [Max]
Analog Devices Inc./Maxim Integrated TMCM-1633-CANOPEN	BB-163X	Brushless (BLDC)	CAN RS-232	10 A	-25 °C	60 °C	Brushless	50 VDC	14 V	Chassis Mount	Board	14.5 V	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 220.00

General part information

Brushless 14 ~ 50VDC Supply 10A 14.5 ~ 50V Load

Technical documentation and resources

No documents available
