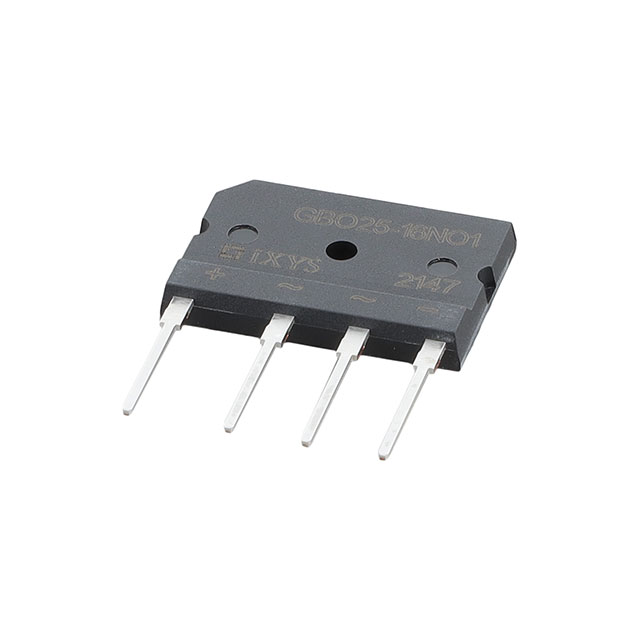

GBO25-16NO1

Active

IXYS

BRIDGE RECT 1P 1.6KV 25A 4SIP

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.6KV 25A 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	GBO25-16NO1

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	50 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	GBO, 4-SIP
Supplier Device Package	4-SIP
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Diode Type	Package / Case	Mounting Type	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Technology	Voltage - Peak Reverse (Max) [Max]
IXYS GBO25-16NO1	150 °C	-40 °C	1.1 V	4-SIP	50 µA	Single Phase	4-SIP GBO	Through Hole	1.6 kV	25 A	Standard
IXYS GBO25-12NO1	150 °C	-40 °C	1.1 V	4-SIP	50 µA	Single Phase	4-SIP GBO	Through Hole		25 A	Standard	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.6 kV Through Hole 4-SIP
