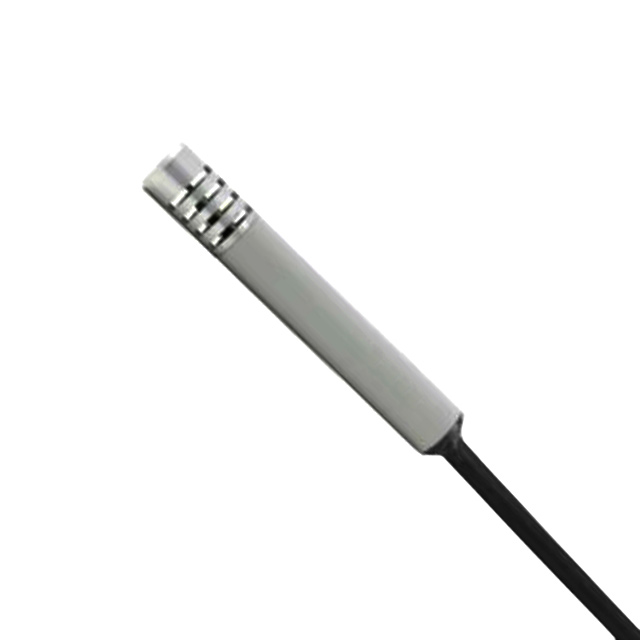

HPP809A033
TE Connectivity Measurement Specialties
SENSOR HUMID/TEMP 5V ANLG 3% MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHTM2500LF
HPP809A033
TE Connectivity Measurement Specialties
SENSOR HUMID/TEMP 5V ANLG 3% MOD
Deep-Dive with AI
DocumentsHTM2500LF
Technical Specifications
Parameters and characteristics for this part
| Specification | HPP809A033 |
|---|---|
| Accuracy | 3 % RH |
| Humidity Range [Max] | 99 % RH |
| Humidity Range [Min] | 1 % RH |
| Mounting Type | User Defined |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 2.48 V |
| Output Type | Analog Voltage |
| Response Time | 5 s |
| Sensitivity | 26 mV/%RH |
| Sensor Type | Temperature, Humidity |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 169.86 | |
| 5 | $ 143.29 | |||
| 10 | $ 133.17 | |||
| 25 | $ 120.90 | |||
| 50 | $ 112.37 | |||
Description
General part information
HPP809 Series
Humidity, Temperature 1 ~ 99% RH Analog Voltage ±3% RH 5 s User Defined
