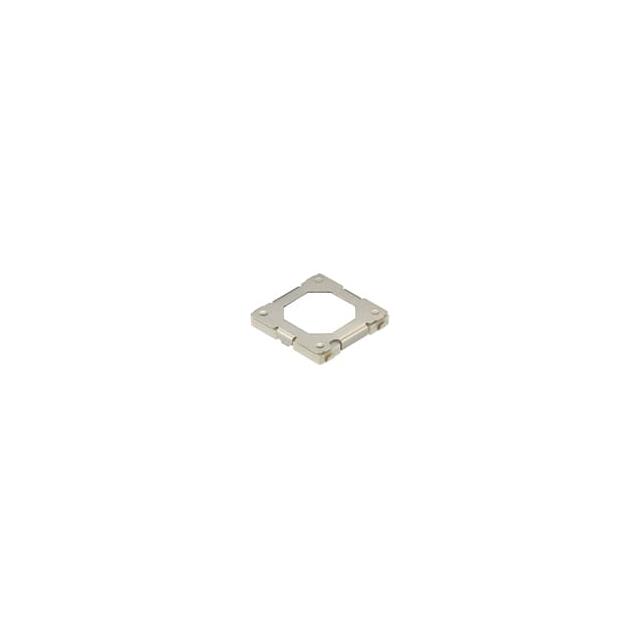

SKRNPAE010

Active

Alps Alpine

SWITCH TACTILE DPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE DPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKRNPAE010

Actuator Height off PCB, Vertical [z]	0.9 mm
Actuator Orientation	Top Actuated
Actuator Type	Without
Circuit	DPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	30000 Steps
Mounting Type	Surface Mount
Operating Force [Max]	250 gf
Operating Force [Min]	80 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.4 mm
Outline [y]	6 mm
Switch Function	On-Mom
Switch Travel [custom]	0.4 mm, 0.25 mm
Termination Style	J Lead

Part	Operating Force [Max]	Operating Force [Min]	Switch Function	Illumination	Switch Travel [custom]	Actuator Orientation	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Type	Outline [x]	Outline [y]	Termination Style	Mechanical Life	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]
Alps Alpine SKRNPBE010	250 gf	80 gf	On-Mom	Non-Illuminated	0.25 mm 0.4 mm	Top Actuated	0.05 A 12 VDC	0.9 mm	Without	6.4 mm	6 mm	J Lead	30000 Steps	Surface Mount	DPST-NO	90 °C	-40 °C
Alps Alpine SKRNPAE010	250 gf	80 gf	On-Mom	Non-Illuminated	0.25 mm 0.4 mm	Top Actuated	0.05 A 12 VDC	0.9 mm	Without	6.4 mm	6 mm	J Lead	30000 Steps	Surface Mount	DPST-NO	90 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch DPST-NO Top Actuated Surface Mount
