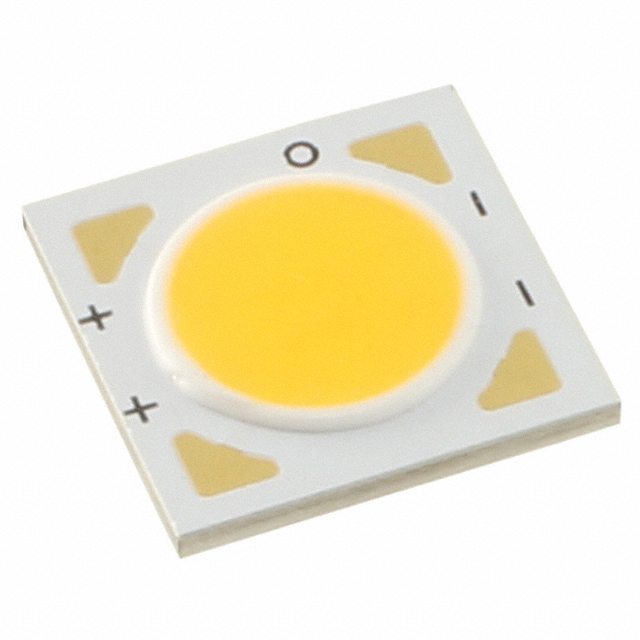

BXRE-40E0800-A-03

Obsolete

BRIDGELUX

LED, NEUTRAL WHITE, 80 CRI RATING, 6.2 W, 805 LM, 175 MA, 120 °, 4000 K, SMD-4, ROUND WITH FLAT TOP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

BXRE-40E0800-A-03

Obsolete

BRIDGELUX

LED, NEUTRAL WHITE, 80 CRI RATING, 6.2 W, 805 LM, 175 MA, 120 °, 4000 K, SMD-4, ROUND WITH FLAT TOP

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-40E0800-A-03

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	350 mA
Current - Test	175 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	8.1 mm
Luminous Flux @ Current/Temperature	770 lm
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	12.5 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	35.6 V

BXRE-40 Series

...

Part	Current - Test	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	Configuration	Viewing Angle	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Temperature - Test	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]	Lens Type	Type	Height [z]	CCT (K)	Color	Lumens/Watt @ Current - Test
BRIDGELUX BXRE-40E0800-A-23	175 mA	8.1 mm	749 lm	Square	120 °	34.6 V	80	85 °C	12.5 mm	12.5 mm	350 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White
BRIDGELUX BXRE-40G0800-D-72	350 mA	8.1 mm		Square	120 °	16.7 V	90	85 °C	12.5 mm	12.5 mm	700 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	125 lm/W
BRIDGELUX BXRE-40E1000-B-72	270 mA	10.2 mm	1315 lm	Square	120 °	33.8 V	80	85 °C			540 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	143 lm/W
BRIDGELUX BXRE-40G1000-B-73	270 mA	10.2 mm	1125 lm	Square		34 V	90	85 °C			540 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	122 lm/W
BRIDGELUX BXRE-40E0800-A-03	175 mA	8.1 mm	770 lm	Square	120 °	35.6 V	80		12.5 mm	12.5 mm	350 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White
BRIDGELUX BXRE-40E2000-C-73	630 mA	14 mm	3170 lm	Square		33.9 V	80	85 °C	19 mm	19 mm	1.26 A	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	148 lm/W
BRIDGELUX BXRE-40E1000-B-73	270 mA	10.2 mm	1315 lm	Square		34 V	80	85 °C			540 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	143 lm/W
BRIDGELUX BXRE-40G3001-D-23		15.2 mm	2822 lm	Square	120 °	36 V	90		21 mm	21 mm	1.4 A	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	112 lm/W
BRIDGELUX BXRE-40E0400-C-83	80 mA	6.3 mm	478 lm	Square	120 °	33.7 V	80		12.5 mm	12.5 mm	250 mA	Flat	Chip On Board (COB)	1.65 mm	4000 K	Neutral White	177 lm/W
BRIDGELUX BXRE-40E0800-D-73	350 mA	8.1 mm	850 lm	Square	120 °	16.7 V	80	85 °C	12.5 mm	12.5 mm	700 mA	Flat	Chip On Board (COB)	1.7 mm	4000 K	Neutral White	145 lm/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

BXRE-40 Series

LED Lighting COBs Engines Modules Chip On Board (COB) V8 Array White, Neutral Square

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
