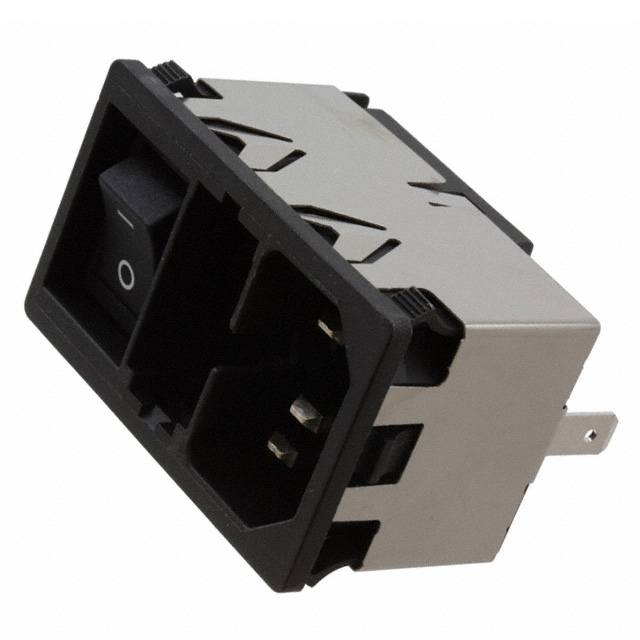

KM01.1205.11
ActiveSCHURTER Inc.
POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/SWITCH ST 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KM01.1205.11
ActiveSCHURTER Inc.
POWER ENTRY MODULE UNFILTERED M 3 POS 250VAC 10A FUSE/SWITCH ST 1 PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KM01.1205.11 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | CCC, ENEC, cULus |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Features | Terminating Cover, Shielded |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.8 mm |
| Panel Cutout Dimensions [y] | 47.8 mm |
| Panel Thickness [Max] | 2.5 mm |
| Panel Thickness [Max] | 0.098 in |
| Panel Thickness [Min] | 1 mm |
| Panel Thickness [Min] | 0.039 in |
| Switch Features | Switch On-Off |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
KM01.1205 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
