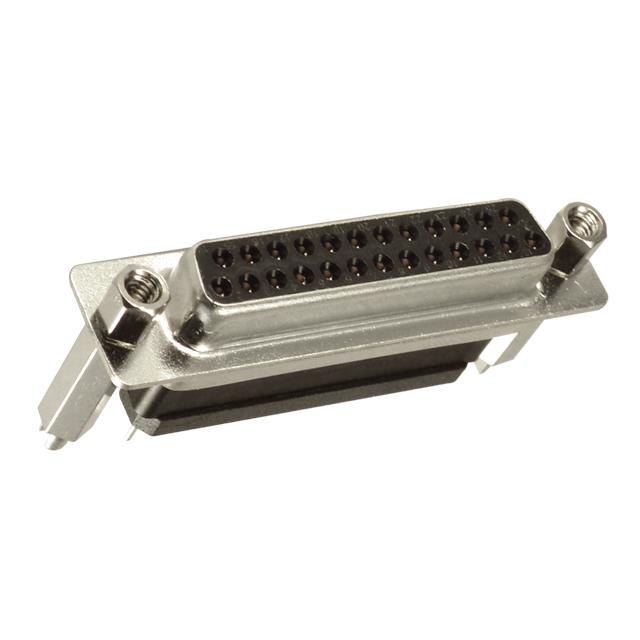

KF88X-BC-25P-BR

Active

Kycon, Inc.

D-SUB STANDARD CONNECTORS D25 ML HI-PROF FMED FE-W/BSH J/S

Search across all available documentation for this part.

Active

Kycon, Inc.

D-SUB STANDARD CONNECTORS D25 ML HI-PROF FMED FE-W/BSH J/S

Technical Specifications

Parameters and characteristics for this part

Specification	KF88X-BC-25P-BR

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder
Voltage Rating	30 VDC

D-Sub Standard Connectors D25 ML HI-PROF FMED FE-W/BSH J/S

Part	Contact Material	Number of Rows	Connector Type	Material Flammability Rating	Flange Feature	Voltage Rating	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Current Rating (Amps)	Contact Finish Thickness	Color	Features	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Type	Mounting Type	Contact Finish	Shell Material, Finish
Kycon, Inc. KF88X-BC-25P-BR	Brass	2	Male Pins Plug	UL94 V-0	4-40 Board Side	30 VDC	Polybutylene Terephthalate (PBT) Glass Filled	B DB	3	D-Sub	2 A	Flash	Black	Board Lock Grounding Indents	105 ░C	-55 °C	Solder	Signal	Through Hole	Gold	Nickel Plated Steel
