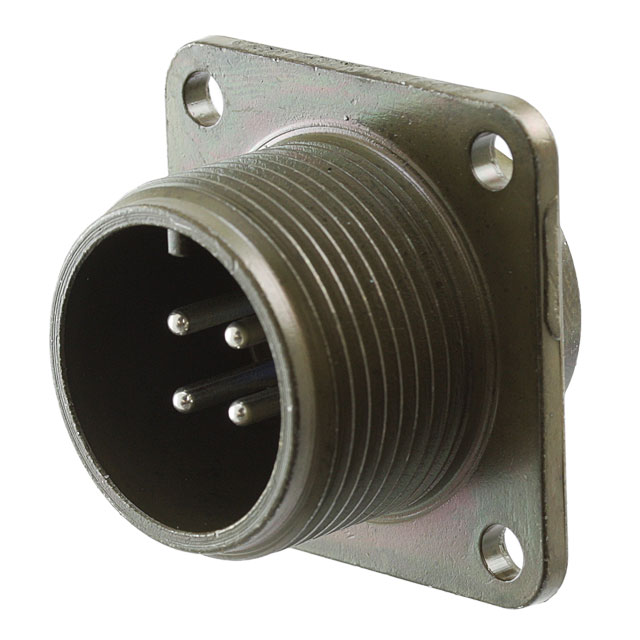

97-3102A-14S-2P

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102A-14S-2P

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-14S-2P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	14S-2
Shielding	Unshielded

97-3102A14 Series

Part	Contact Material	Shielding	Connector Type	Applications	Insert Material	Shell Material	Mounting Feature	Primary Material	Orientation	Shell Finish	Color	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Amphenol Industrial Operations 97-3102A-14S-5P	Copper Alloy	Unshielded	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Olive Drab Chromate over Cadmium	Olive Drab	Silver	14S-5	-55 °C	125 °C
Amphenol Industrial Operations 97-3102A-14S-2P	Copper Alloy	Unshielded	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Olive Drab Chromate over Cadmium	Olive Drab	Silver	14S-2	-55 °C	125 °C	4
Amphenol Industrial Operations 97-3102A-14S-6S	Copper Alloy	Unshielded	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Olive Drab Chromate over Cadmium	Olive Drab	Silver	14S-6	-55 °C	125 °C	6
Amphenol Industrial Operations 97-3102A14S-2P-621	Copper Alloy	Unshielded	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Black Zinc Alloy	Black	Silver	14S-2	-55 °C	125 °C	4
Amphenol Industrial Operations 97-3102A-14S-1S	Copper Alloy	Unshielded	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Olive Drab Chromate over Cadmium	Olive Drab	Silver	14S-1	-55 °C	125 °C
Amphenol Industrial Operations 97-3102A-14S-5S	Copper Alloy	Unshielded	Receptacle Female Sockets	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Olive Drab Chromate over Cadmium	Olive Drab	Silver	14S-5	-55 °C	125 °C
Amphenol Industrial Operations 97-3102A-14S-9P	Copper Alloy	Unshielded	Male Pins Receptacle	Automotive Industrial	Diallyl Phthalate (DAP)	Aluminum Alloy	Flange	Metal	N	Olive Drab Chromate over Cadmium	Olive Drab	Silver	14S-9	-55 °C	125 °C	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.96
		10	$ 11.01
		25	$ 10.32
		50	$ 9.83
		100	$ 9.36
		250	$ 8.78
		500	$ 8.36
		1000	$ 7.96

Description

General part information

97-3102A14 Series

4 Position Circular Connector Receptacle, Male Pins Solder Cup
