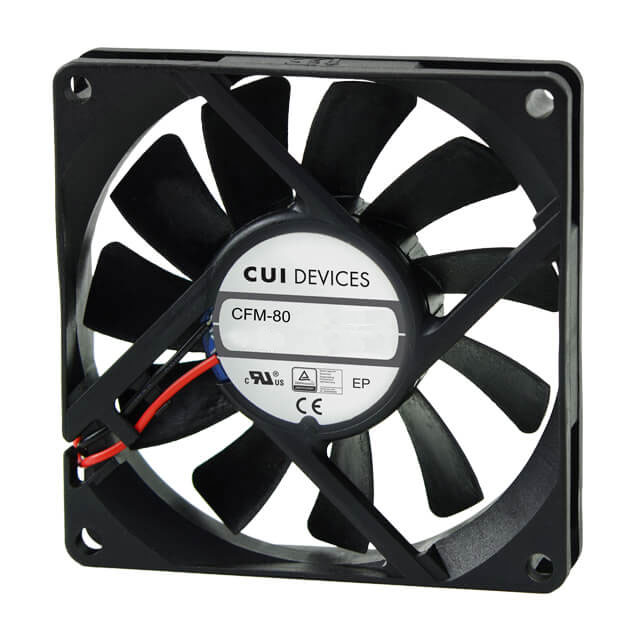

CFM-8020V-126-300-20

Obsolete

CUI Devices

FAN AXIAL 80X20MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

CUI Devices

FAN AXIAL 80X20MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	CFM-8020V-126-300-20

Air Flow	0.812 mł/min
Air Flow	29 CFM
Approval Agency	cURus, CE, TUV
Current Rating (Amps)	0.086 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	30 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.04 W
RPM	2600 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	29.9 Pa
Static Pressure	0.12 in H2O
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	6 VDC
Weight	65.77 g
Weight	0.145 lb
Width [y]	20 mm

Part	Weight	Weight	Noise	RPM	Features	Approval Agency	Air Flow	Air Flow	Power (Watts)	Material - Blade	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [y]	Fan Type	Termination	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Static Pressure	Static Pressure
CUI Devices CFM-8020V-126-300-20	65.77 g	0.145 lb	30 dB(A)	2600 RPM	Auto Restart Speed Sensor (Tach)	CE cURus TUV	0.812 mł/min	29 CFM	1.04 W	Polybutylene Terephthalate (PBT)	12 VDC	13.8 VDC	6 VDC	0.086 A	70 °C	70 °C	-10 °C	-10 °C	20 mm	Tubeaxial	3 Wire Leads	80 mm	80 mm	70000 Hrs	29.9 Pa	0.12 in H2O
CUI Devices CFM-8020V-233-380-20	65.77 g	0.145 lb	38 dB(A)	3300 RPM	Auto Restart Speed Sensor (Tach)	CE cURus TUV	1.01 m³/min	36 CFM	1.78 W	Polybutylene Terephthalate (PBT)	24 VDC			0.074 A	70 °C	70 °C	-10 °C	-10 °C	20 mm	Tubeaxial	3 Wire Leads	80 mm	80 mm	70000 Hrs	44.8 Pa	0.18 in H2O
CUI Devices CFM-8020V-230-350-11	65.77 g	0.145 lb	35 dB	3000 RPM	Auto Restart	CE cURus TUV	0.927 mł/min	33.1 CFM		Polybutylene Terephthalate (PBT)	24 VDC			0.059 A	70 °C	70 °C	-10 °C	-10 °C	20 mm	Tubeaxial	3 Wire Leads	80 mm	80 mm	70000 Hrs	40 Pa	0.16 in H2O
CUI Devices CFM-8020V-133-380	66.22 g	0.146 lb	38 dB(A)	3300 RPM	Auto Restart	CE cURus TUV	1.01 m³/min	36 CFM	1.8 W	Polybutylene Terephthalate (PBT)	12 VDC	13.8 VDC	6 VDC	150 mA	70 °C	70 °C	-10 °C	-10 °C	20 mm	Tubeaxial	2 Wire Leads	80 mm	80 mm	70000 Hrs	44.8 Pa	0.18 in H2O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H omniCOOL™ Magnetic Sleeve 29.0 CFM (0.812m³/min) 3 Wire Leads
