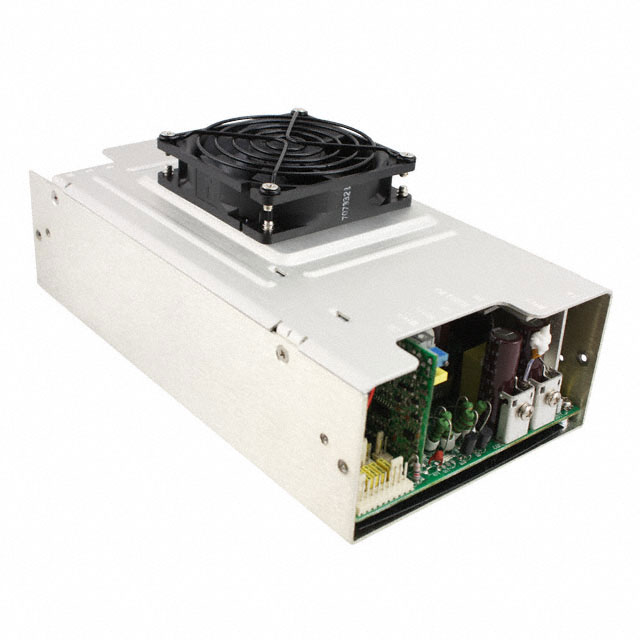

LPS353-CF

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 12V 350W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 12V 350W

Technical Specifications

Parameters and characteristics for this part

Specification	LPS353-CF

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	29.2 A
Efficiency	75 %
Features	Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Standby Output, PFC, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	350 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	63.5 mm
Size / Dimension [z]	2.5 in
Type	Enclosed
Voltage - Output 1	12 V

Part	Mounting Type	Minimum Load Required	Approval Agency	Type	Applications	Current - Output 1	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Features	Voltage - Output 1
ARTESYN / Advanced Energy LPS353-CF	Chassis Mount		CB CE	Enclosed	ITE (Commercial)	29.2 A	75 %	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	70 °C	0 °C	350 W	1	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
