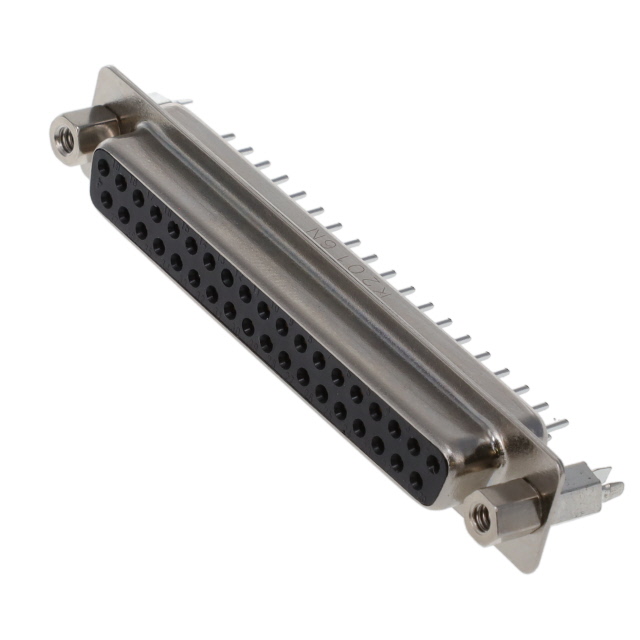

K85X-CD-37S-BRJ
ActiveKycon, Inc.
CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
K85X-CD-37S-BRJ
ActiveKycon, Inc.
CONN D-SUB RCPT 37POS VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K85X-CD-37S-BRJ |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 2 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Board Side (4-40), Mating Side, Female Screwlock (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.34 | |
| 10 | $ 7.09 | |||
| 28 | $ 6.59 | |||
| 56 | $ 6.27 | |||
| 112 | $ 5.97 | |||
| 252 | $ 5.64 | |||
| 504 | $ 5.37 | |||
| 1008 | $ 5.12 | |||
Description
General part information
K85X-CD Series
37 Position D-Sub Receptacle, Female Sockets Connector
