21SM284

Active

Honeywell Sensing and Productivity Solutions

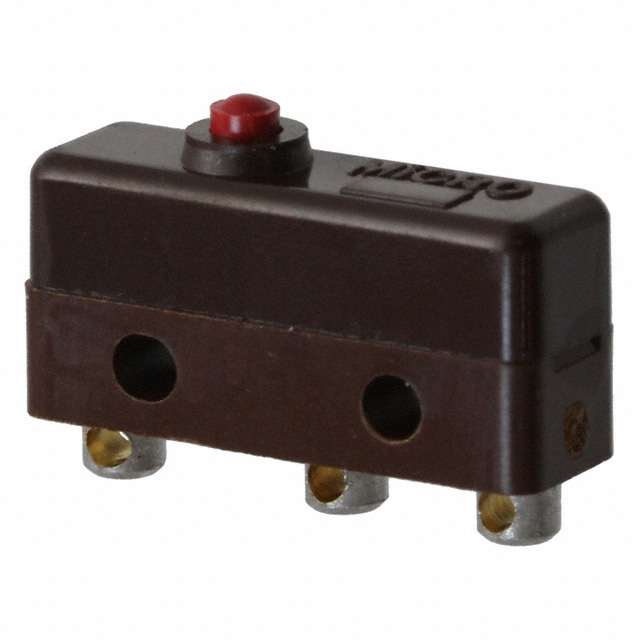

SWITCH SNAP ACTION SPDT 5A 115V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Overtravel	Overtravel	Mechanical Life	Operating Position	Operating Position	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - DC	Pretravel	Pretravel	Current Rating (Amps)	Switch Function	Termination Style	Operating Force	Release Force	Circuit	Mounting Type
Honeywell Sensing and Productivity Solutions 21SM284	0.13 mm	0.005 in	80000 Cycles	8.4 mm	0.33 in	0.1 mm	0.004 in	115 V	-55 °C	125 °C	Round (Pin Plunger)	28 V	0.03 in	0.8 mm	5 A	On-Mom	Solder Lug	141 gf	28 gf	SPDT	Chassis Mount
Honeywell Sensing and Productivity Solutions 21SM284-T2	0.13 mm	0.005 in	80000 Cycles	8.4 mm	0.33 in	0.1 mm	0.004 in	115 V	-55 °C	125 °C	Round (Pin Plunger)	28 V	0.03 in	0.8 mm	5 A	On-Mom	Solder Turret	141 gf	28 gf	SPDT	Chassis Mount
Honeywell Sensing and Productivity Solutions 21SM144	0.13 mm	0.005 in	80000 Cycles	8.4 mm	0.33 in	0.05 mm	0.002 in	250 V	-55 °C	125 °C	Round (Pin Plunger)	30 V	0.03 in	0.8 mm	5 A	On-Mom	Solder Lug	85 gf	28 gf	SPDT	Chassis Mount
Honeywell Sensing and Productivity Solutions 21SM369	0.13 mm	0.005 in	80000 Cycles	8.4 mm	0.33 in	0.05 mm	0.002 in	250 V	-55 °C	125 °C	Round (Pin Plunger)	30 V	0.03 in	0.8 mm	5 A	On-Mom	Solder Lug	85 gf	28 gf	SPDT	Chassis Mount
Honeywell Sensing and Productivity Solutions 21SM366	0.13 mm	0.005 in	80000 Cycles	8.4 mm	0.33 in	0.05 mm	0.002 in	125 V	-55 °C	125 °C	Round (Pin Plunger)	30 V	0.03 in	0.8 mm		On-Mom	Solder Lug	85 gf	28 gf	SPDT	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
