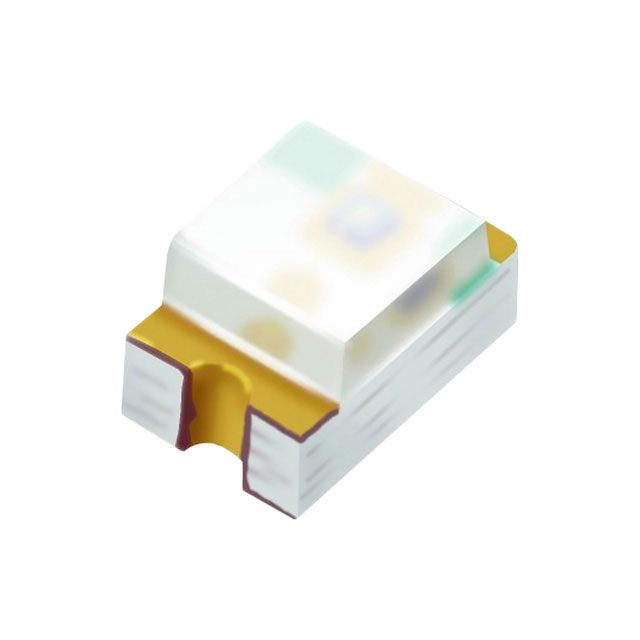

EAST2012GA5

Active

Everlight Electronics Co Ltd

LED GREEN CLEAR 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EAST2012GA5

Active

Everlight Electronics Co Ltd

LED GREEN CLEAR 2SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EAST2012GA5

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1 mm
Lens Color	Colorless
Lens Size [x]	1.4 mm
Lens Size [y]	1.25 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	315 mcd
Mounting Type	Surface Mount
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [y]	1.25 mm
Supplier Device Package	2-SMD
Viewing Angle	140 °
Voltage - Forward (Vf) (Typ)	3.4 V
Wavelength - Dominant	523 nm
Wavelength - Peak	518 nm

EAST2012 Series

Part	Lens Color	Mounting Type	Wavelength - Peak	Supplier Device Package	Lens Transparency	Lens Style	Viewing Angle	Configuration	Package / Case	Color	Millicandela Rating	Current - Test	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max] [z]	Lens Size [y]	Lens Size [x]	Wavelength - Dominant	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant [custom]
Everlight Electronics Co Ltd EAST2012GA5	Colorless	Surface Mount	518 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Green	315 mcd	20 mA	2 mm	1.25 mm	1 mm	1.25 mm	1.4 mm	523 nm	3.4 V
Everlight Electronics Co Ltd EAST2012BA2	Colorless	Surface Mount	468 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Blue	79 mcd	20 mA	2 mm	1.25 mm	1.1 mm	1.25 mm	1.4 mm	471 nm	3.3 V
Everlight Electronics Co Ltd EAST2012GA8	Colorless	Surface Mount	568 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Green	45 mcd	20 mA	2 mm	1.25 mm	1 mm	1.25 mm	1.4 mm	568 nm	2.05 V
Everlight Electronics Co Ltd EAST2012WA3	Yellow	Surface Mount		2-SMD	Diffused	Rectangle with Flat Top	150 °	Standard	0805	White	79 mcd	5 mA	2 mm	1.25 mm	1.1 mm	1.25 mm	1.4 mm		3 V
Everlight Electronics Co Ltd EAST2012YA0-AM	Colorless	Surface Mount	591 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Yellow	20 mcd	5 mA	2 mm	1.25 mm	1.1 mm	1.25 mm	1.4 mm	590 nm	2 V
Everlight Electronics Co Ltd EAST2012GA4	Colorless	Surface Mount	575 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Yellow-Green	68 mcd	20 mA	2 mm	1.25 mm	1 mm	1.25 mm	1.4 mm	573 nm	2.05 V
Everlight Electronics Co Ltd EAST2012GA3	Colorless	Surface Mount	575 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Yellow-Green	50 mcd	20 mA	2 mm	1.25 mm	1 mm	1.25 mm	1.4 mm	573 nm	2.05 V
Everlight Electronics Co Ltd EAST2012RA1	Colorless	Surface Mount	632 nm	2-SMD	Clear	Rectangle with Flat Top	120 °	Standard	0805	Red	79 mcd	20 mA	2 mm	1.25 mm	1 mm	1.25 mm	1.4 mm	626 nm	2 V
Everlight Electronics Co Ltd EAST2012GA0	Colorless	Surface Mount	575 nm	2-SMD	Clear	Rectangle with Flat Top	140 °	Standard	0805	Yellow-Green	43 mcd	20 mA	2 mm	1.25 mm	1 mm	1.25 mm	1.4 mm	574 nm	2.05 V
Everlight Electronics Co Ltd EAST2012AA1	Colorless	Surface Mount	611 nm	0805	Clear	Rectangle with Flat Top	140 °		0805		78.5 mcd	20 mA	2 mm	1.25 mm	1.1 mm	1.25 mm	1.4 mm		2.05 V	606.5 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.54
		10	$ 0.34
		100	$ 0.19
		1000	$ 0.15
	Digi-Reel®	1	$ 0.54
		10	$ 0.34
		100	$ 0.19
		1000	$ 0.15
	Tape & Reel (TR)	3000	$ 0.14
		6000	$ 0.13
		15000	$ 0.12
		30000	$ 0.11
		75000	$ 0.11

Description

General part information

EAST2012 Series

Green 523nm LED Indication - Discrete 3.4V 0805 (2012 Metric)
